Hyundai Santa Fe (TM): Seat Belt Pretensioner / Emergency Fastening Device (EFD). Repair procedures

Removal

1.	Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

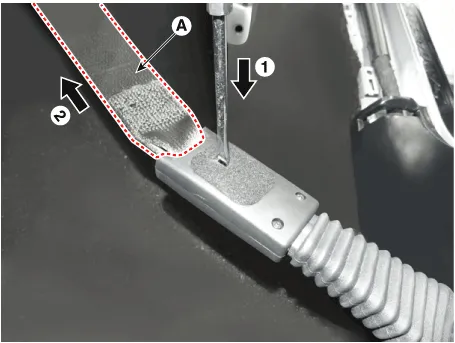

2.	Remove the anchor seat belt (A).

3.	Remove the front seat. (Refer to Body - "Front Seat")

4.	Remove the door scuff trim trim. (Refer to Body - "Door Scuff Trim")

5.	Remove the center pillar lower trim. (Refer to Body - "Center Pillar Trim")

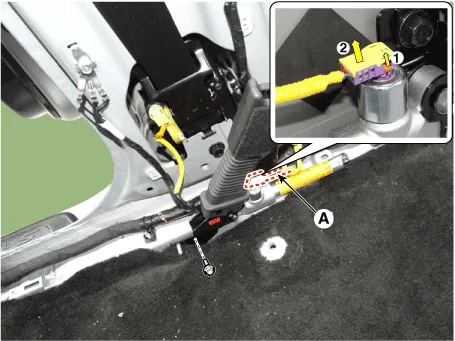

6.	Disconnect the connector (A) and then remove the anchor pretensioner by loosening the mounting bolt.

Installation

Install anchor pretensioner and reconnect the connector (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

2.	Remove the front seat. (Refer to Body - "Front Seat")

3.	Install the center pillar lower trim. (Refer to Body - "Center Pillar Trim")

4.	Install the door scuff trim trim. (Refer to Body - "Door Scuff Trim")

Reconnect the battery negative cable.

After installing the anchor pretensioner, confirm proper system operation:

•	Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

Components 1. Emergency Fastening Device (EFD) System
