Hyundai Santa Fe (TM): Hydraulic System / Description and operation
| Description |
| • |
The hydraulic system consists of a valve body, an oil filter and an
oil pump.
|
| • |
The oil pump is powered by the engine. ATF passes through the oil filter
and gets distributed along the oil channels.
|
| • |
The oil becomes highly pressurized as it exits the oil pump and passes
through the line pressure valve before being fed to the clutch & brake
control valve, clutch, and brakes.
|
| • |
TCM controls the hydraulic pressure using solenoid valves and controls
clutch and brake operations.

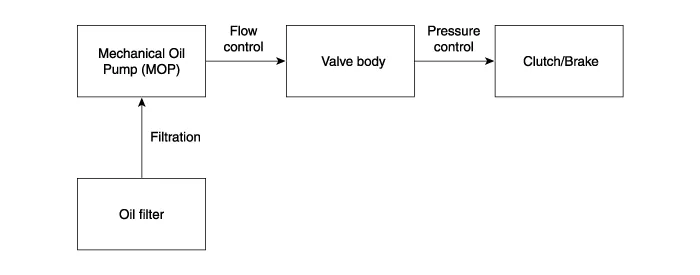

Flow of the hydraulic system
|
Description • The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump.
