Hyundai Santa Fe (TM): Cylinder Block / Crankshaft. Components and components location

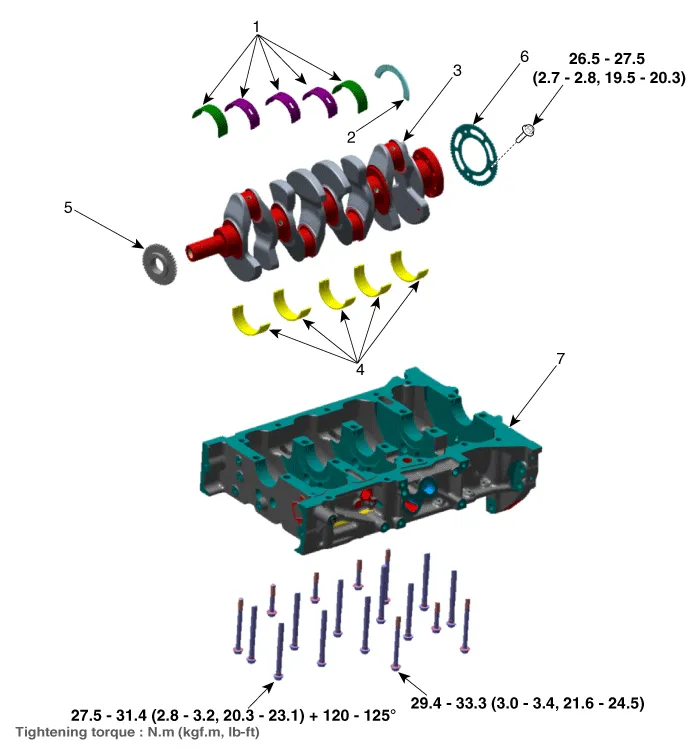

| Components |
| 1. Crankshaft
upper bearing 2. Thrust bearing 3. Crankshaft 4. Crankshaft lower bearing |
5. Crankshaft
sprocket 6. Crankshaft position sensor wheel 7. Lower crankcase |
Disassembly • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Disassembly • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
