Hyundai Santa Fe (TM): ESP(Electronic Stability Program) System / Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Brake System / ESP(Electronic Stability Program) System / Components and components location

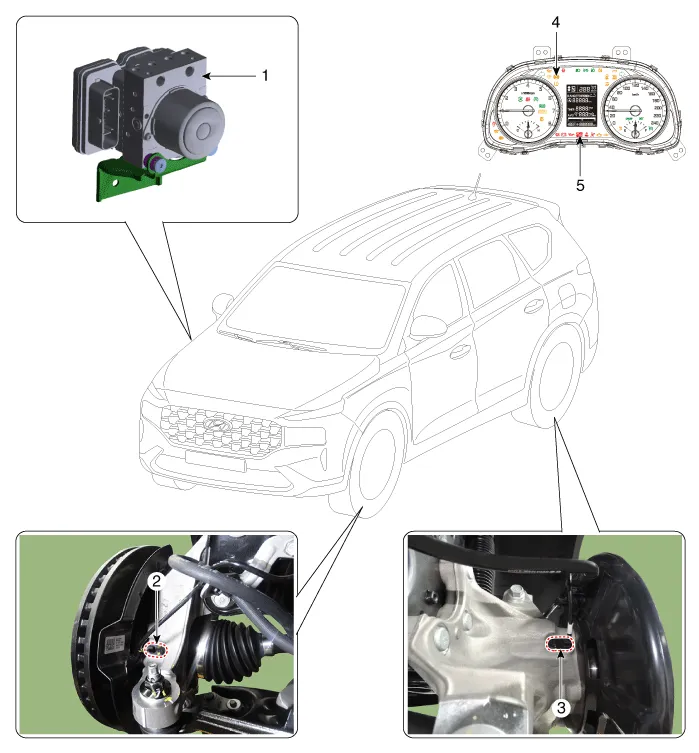

Components

1. ABS control module (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
 4. ABS warning lamp
5. Parking brake/ EBD

    Description of ESP ESP recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-individual braking and engine control intervention.
