Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Auto Lighting Control System / Components and components location

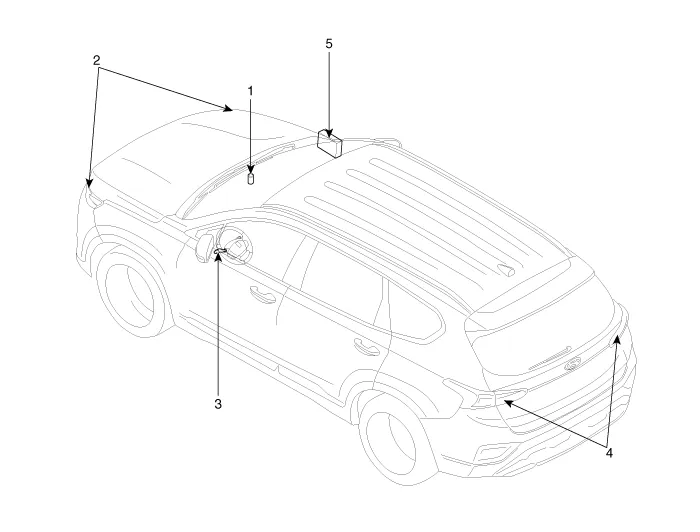

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)

4. Tail lamps
5. IBU (Integrated Body Control Unit)

❮Description and operation

Description It's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination condition.

Specifications❯

Specifications Items Specifications Rated voltage 5V Load Max.
