Hyundai Santa Fe (TM): Rear Glass Defogger / Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Rear Glass Defogger / Components and components location

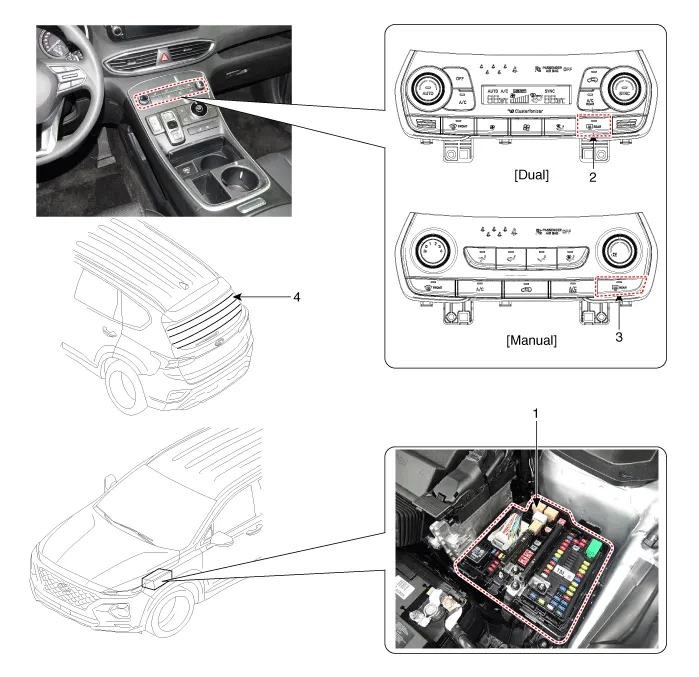

| Component Location |
| 1. Rear
glass defogger relay (Buil-in engine room relay box) 2. Rear glass defogger switch (Dual type) |
3. Rear
glass defogger switch (Manual type) 4. Rear glass defogger |
Inspection Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line.
