Hyundai Santa Fe (TM): Front View Camera System / Components and components location

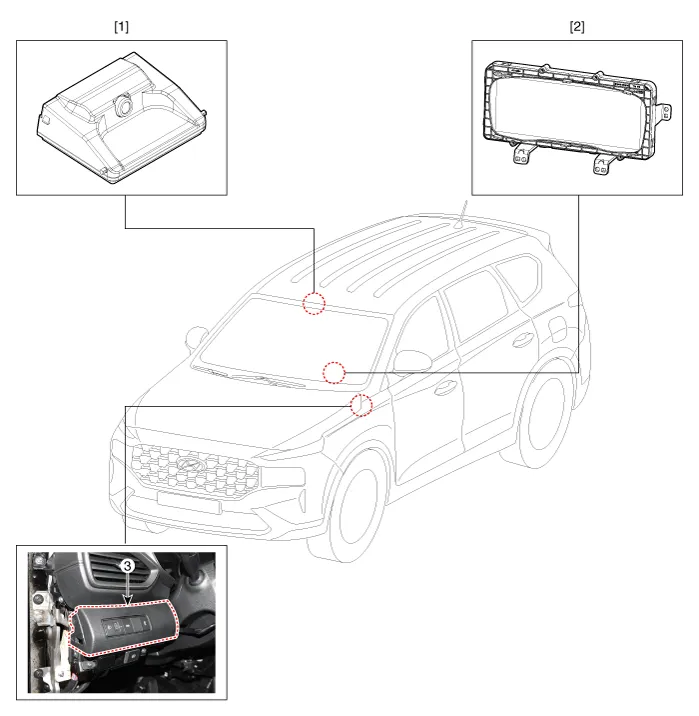

| Components Location |
| 1. Front camera 2.Speaker (Cluster) |
3. Lane keeping
assist swtich |
Description and Operation Blcok Diagram • This system monitors the driving situations through the radar and the camera.
Variant Coding When you need variant coding: – Replace Front View Camera with a new one ※ EOL Variant Coding and calibration required for new replacement Front View Camera Variant Coding Front view camera variant coding makes it possible to operate functions for each vehicle type.
