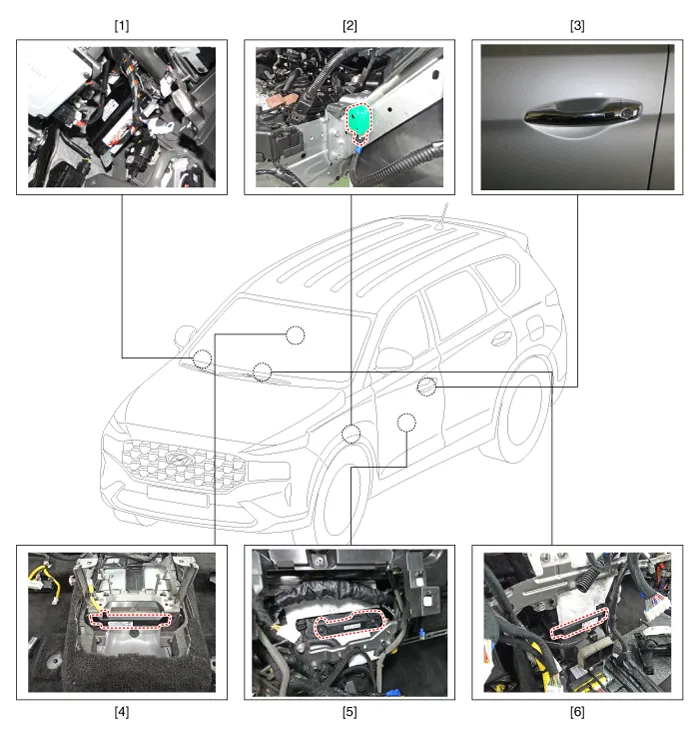

Component Location (1)

1. Integrated Body Control Unit (IBU)
2. Buzzer
3. Door outside handle
 4. Interior antenna 2
5. Door module antenna
6. Interior antenna 1

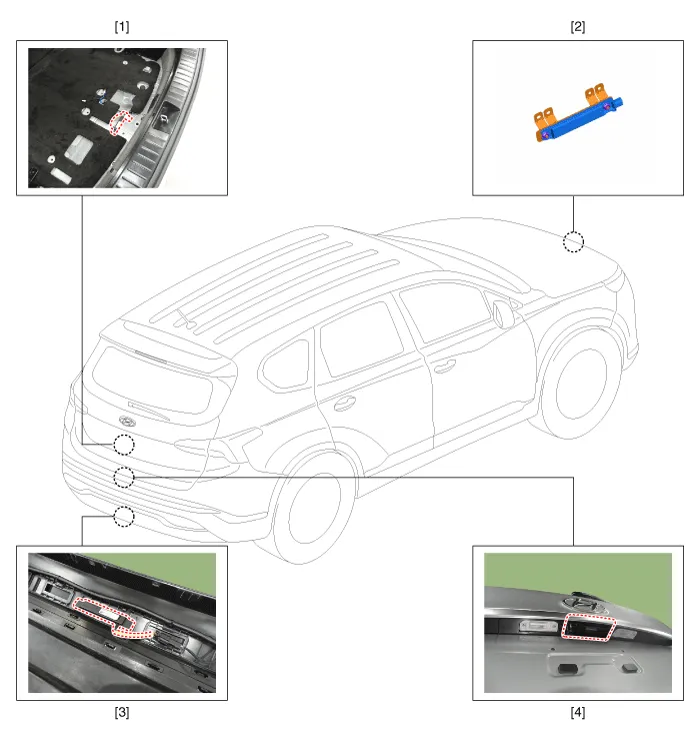

Component Location (2)

1. Tailgate antenna
2. Front bumper antenna
 3. Rear bumper antenna
4. Tailgate open switch

    Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed.

    Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 - 16V Operating temperature -22°F to 167°F (-30°C to- 75°C) Load Max.
