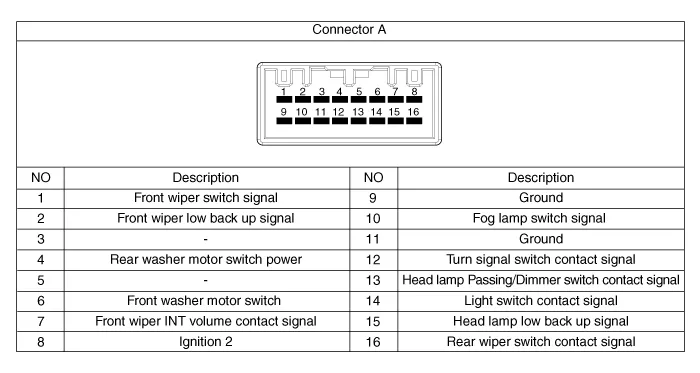

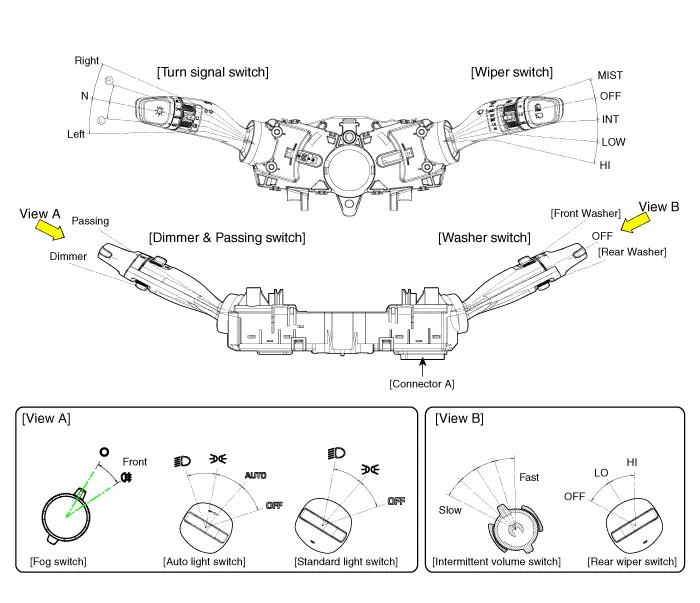

Hyundai Santa Fe (TM): Multifunction Switch / Components and components location
| Component |

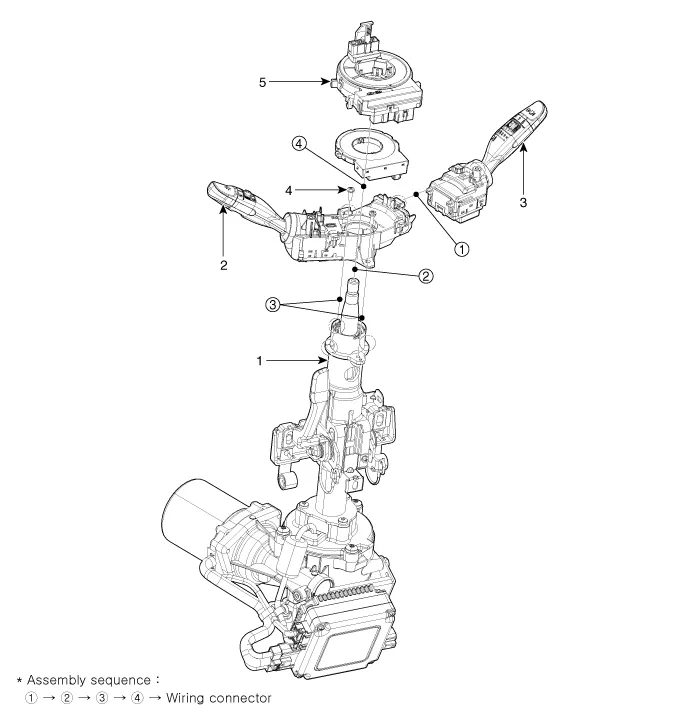

| 1. Steering column 2. Multifunction switch |
3. Screw 4. Clock spring |
Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 to +176°F (-30°C to +80°C) Rated load Dimmer & passing switch High : 0.
