| Component |

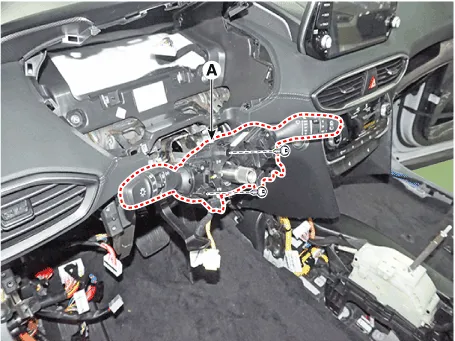

| 1. Steering column 2. Multifunction switch |
3. Screw 4. Clock spring |


| Specifications |
|
Items |
Specifications |
|
|
Rated voltage |
DC 12V |
|
|
Operating temperature range |
-22 to +176°F (-30°C to +80°C) |
|
|
Rated load |
Dimmer & passing switch |
High : 0.2A (Relay load) Low : 0.2A (Relay load) Passing : 0.2A (Relay load) |
|
Lighting switch |
Lighting : 0.2A (Relay load) (High, Low, Auto) |
|
|
Fog lamp switch |
0.2A (Relay load) |
|
|
Turn signal switch |
6.6A (Lamp load) |
|
|
Wiper & mist switch |
Low : 4.5A (Motor load) High : 4.5A (Motor load) Intermittent : 0.25 mA Lock : Max. 28A (Motor load) Washer : 4.0A (Motor load) |
|
|
Rear wiper & washer |
Wiper : 1.0A (Relay load) Washer : 4.0A (Motor load) |
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
|
| 3. |
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
|
| 4. |

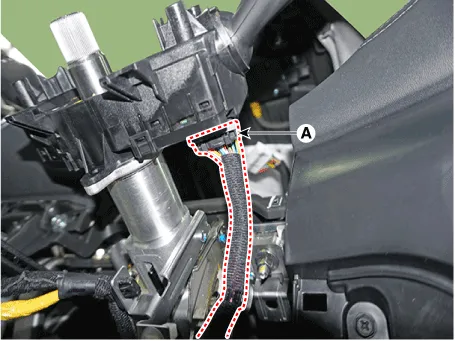

Disconnect the multifunction switch connector (A).
|
| 5. |
Loosen the screws (2EA) and then remove the multifunction switch assembly
(A).
|
| Installation |
| 1. |
Install the multifunction switch.
|
| 2. |
Install the clock spring and steering wheel.
|
| 3. |
Install the steering column upper and lower shrouds.
|
| 4. |
Install the steering wheel.
|
| Inspection |
| 1. |

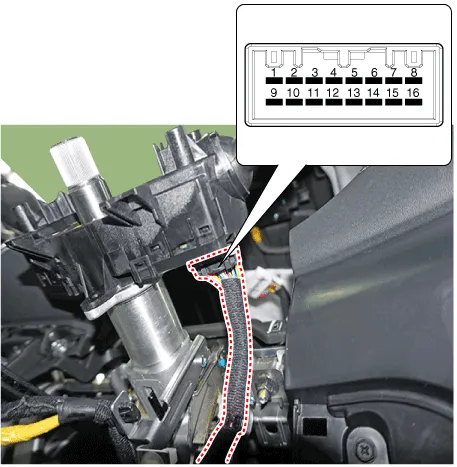

Check for continuity between the terminals in each switch position as
shown below.
|
| 1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (diagnostic tool).
The diagnostic system (diagnostic tool) provides the following information.
|
| 2. |

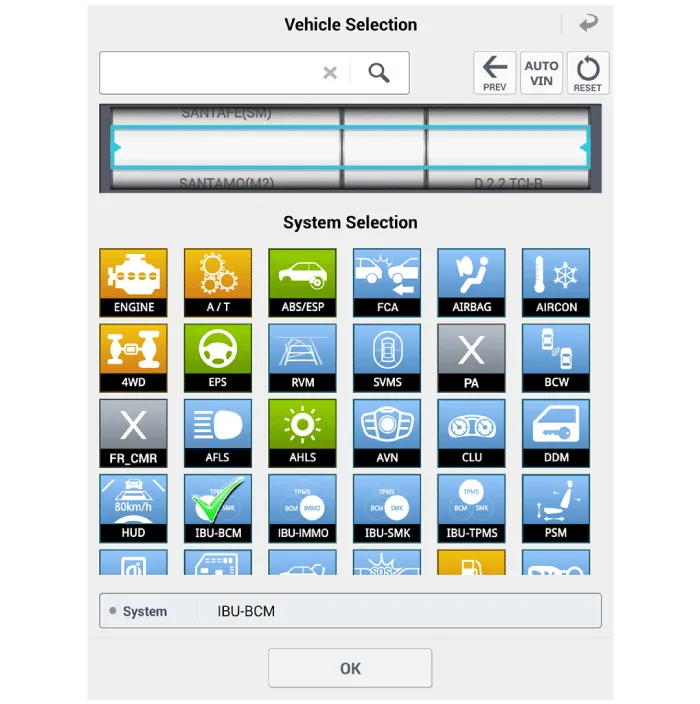

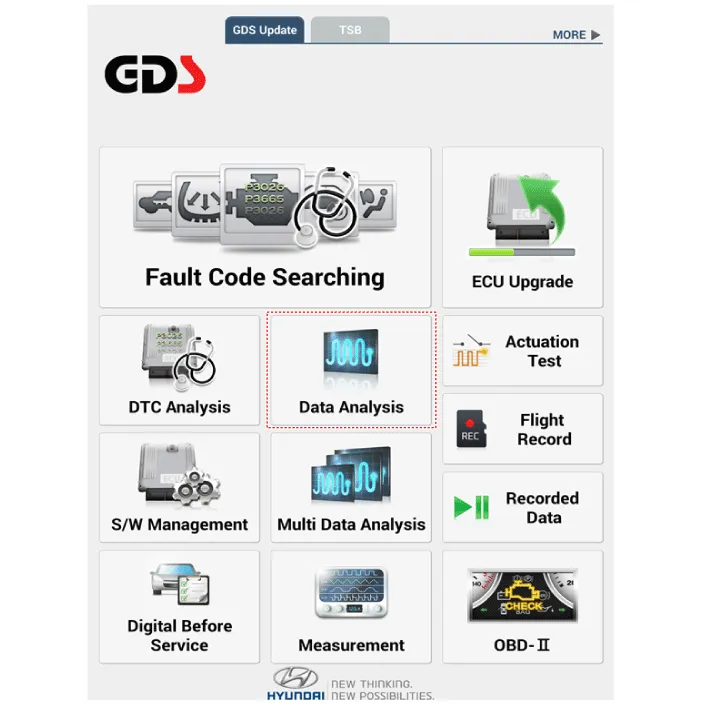

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and
"Vehicle".
|
| 3. |

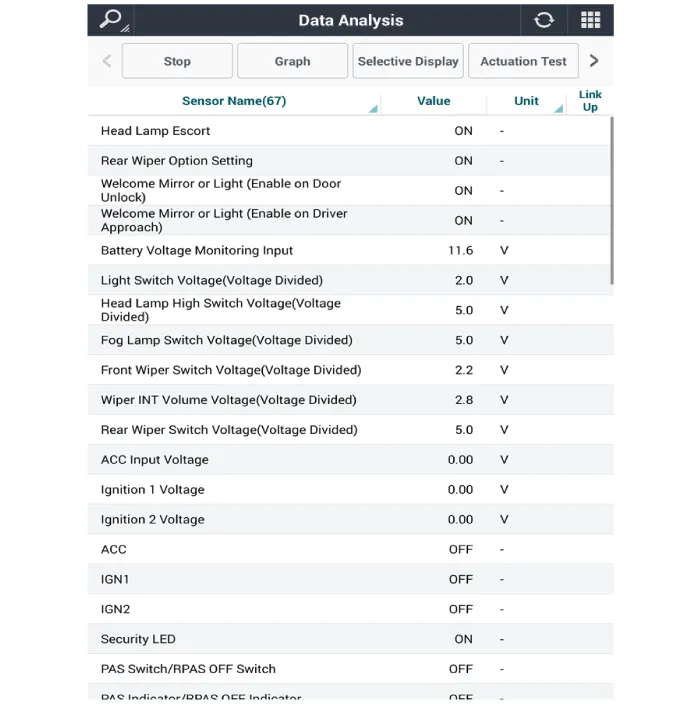

If check current status, select the "Data Analysis" and "Car model".
|
| 4. |
Select the 'IBU_BCM' to search the current state of the input/output
data.
|
