Hyundai Santa Fe (TM): Charging System / Battery Sensor. Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Electrical System / Charging System / Battery Sensor. Description and operation

Description

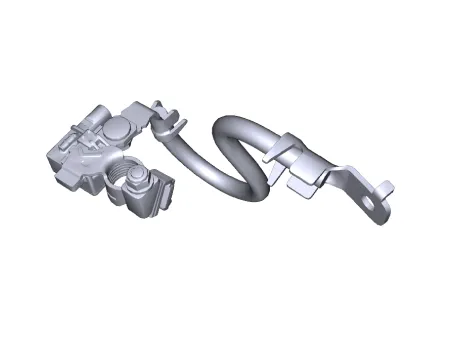

Vehicles have many control units that use more electricity. These units control their own system based on information from various sensors. It is important to provide a stable power supply as these sensors bring diverse information. Battery sensor is mounted on battery (-) terminal. It transmits battery voltage, current, temperature information to ECM. ECM controls generating voltage by duty cycle based on these signals.

    Removal Battery 1. Turn the ignition switch OFF and disconnect the battery (-) terminal (A). Tightening torque : 7.

    Removal 1. Turn the ignition switch OFF and disconnect the battery (-) terminal. 2. Disconnect the battery sensor connector (A).
