Hyundai Santa Fe (TM): Automatic Transaxle System / Automatic Transaxle Fluid (ATF). Components and components location

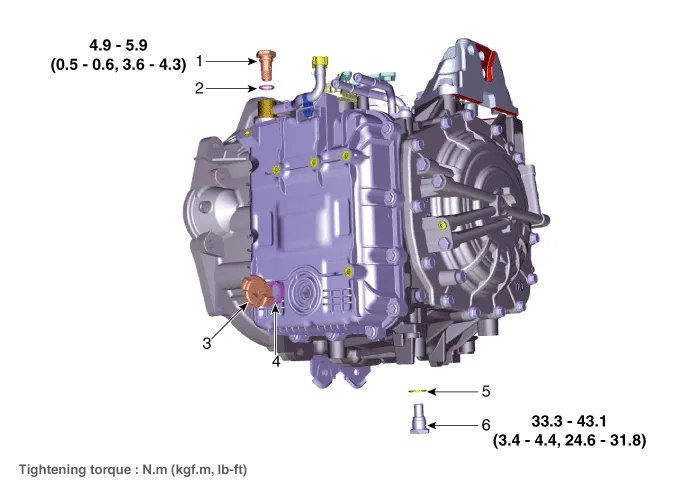

| Components Location |
| 1. ATF Injection
plug (Eyebolt) 2. ATF injection plug gasket 3. ATF level check plug |
4. ATF level
check plug gasket 5. Drain plug gasket 6. Drain plug |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Automatic Transaxle Fluid (ATF) Level Check • When checking the oil level, be careful not to enter dust, foreign matters, etc.
