Removal and Installation
Air Cleaner Assembly
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine And Transaxle Assembly - “Engine Cover”)
3.

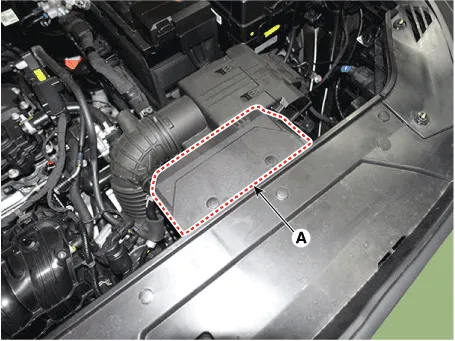

Remove the air duct (A).

4.

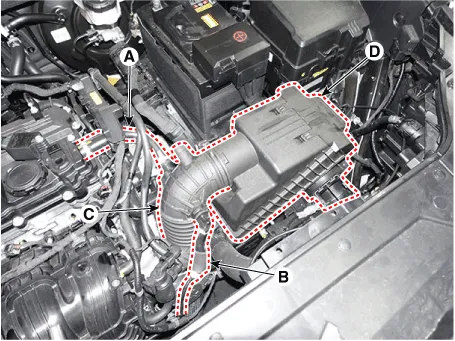

Remove the air cleaner assembly.
(1)
Disconnect the breather hose A (A).
(2)
Disconnect the breather hose B (B).
(3)
Disconnect the air intake hose (C) and then remove the air cleaner assembly (D).
Tightening torque
Hose clamp :
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Air cleaner bolts :
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

5.
Install in the reverse order of removal.
Air Cleaner Element Replacement
1.

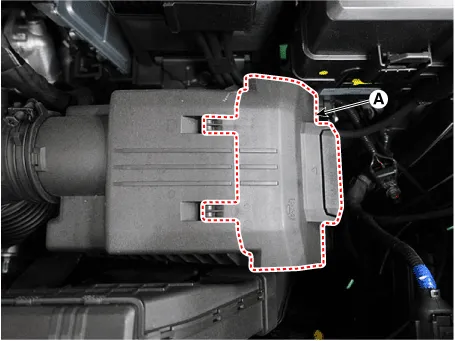

Open the air cleaner element cover (A) by lifting up the air cleaner element cover handle.
2.

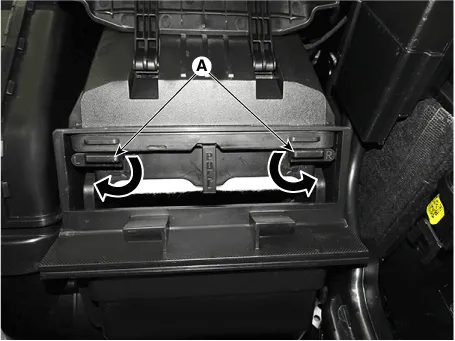

Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.
3.

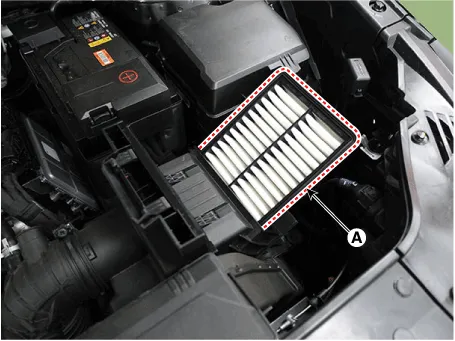

Replace the air cleaner element (A) with a new one.


•
Grab the handle then pull out the air cleaner element.
4.
Lock the air cleaner element camshaft and then close the air cleaner element cover.
