Hyundai Santa Fe (TM): Fuel Delivery System / Accelerator Pedal. Repair procedures
| Removal |
| 1. |
Turn the ignition switch OFF and disconnect the battery (-) terminal.
|
| 2. |

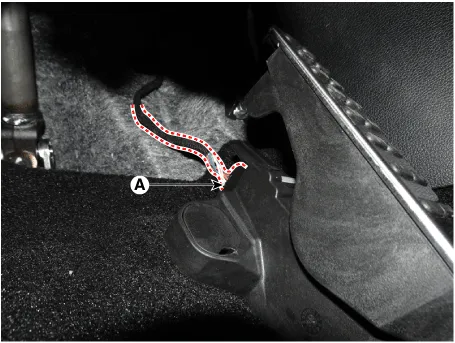

Disconnect the accelerator position snesor connector (A).
|
| 3. |

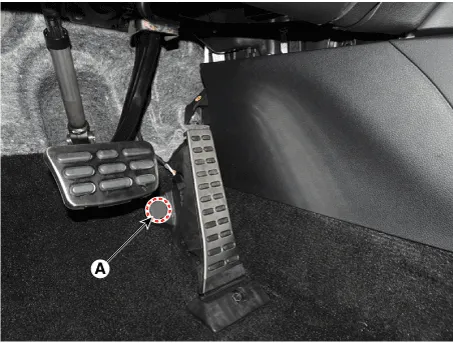

Disconnect the mounting cap (A).
|
| 4. |

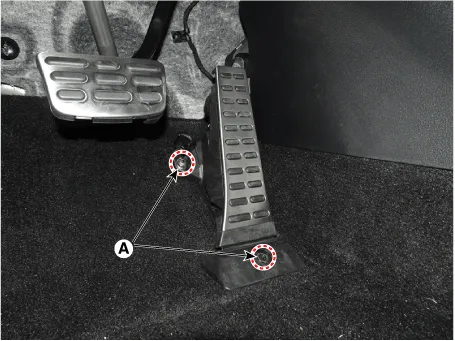

Remove the accelerator pedal module from the vehicle after loosening
the mounting bolt (A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
