Removal
1.
Release the residual pressure in fuel line.
Release the residual pressure in fuel line.
2.
Turn the ignition switch OFF and disconnect the battery (-) terminal.
3.

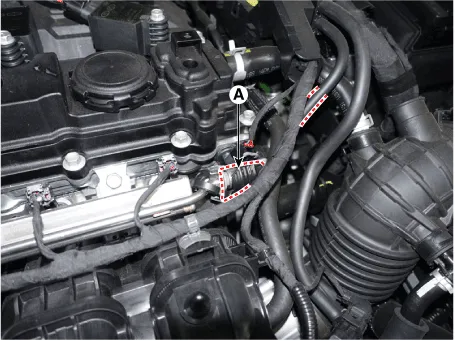

Disconnect the fuel delivery line quick-connector (A).


•
Open the clamp cover (B) before disconnecting the quick-connector. (If the clip is applied)

•
When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
•
If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.
4.
Disconnect the injector connector (A).
5.

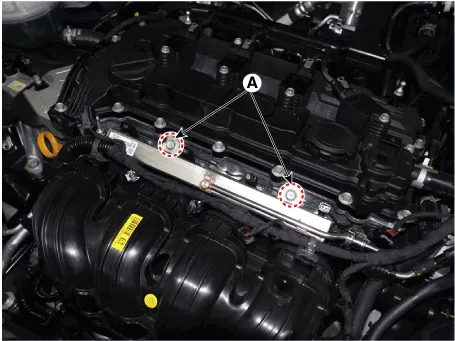

Remove the delivery pipe & injector assembly after loosening the bolt (A).
Tightening Torque
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Installation
1.
Install in the reverse order of removal.
