Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Automatic Transaxle System (SBC) / Hydraulic System / 35R Clutch Control Solenoid Valve (35R/C_VFS). Description and operation

Description

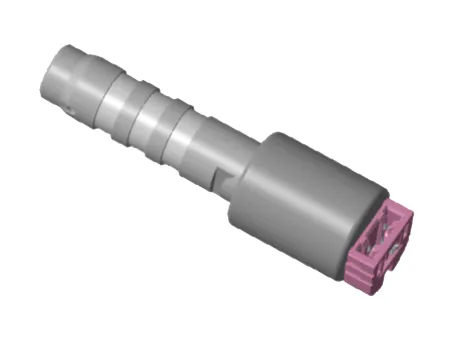

•	35R Clutch control solenoid valve(35R/C) is attached to the valve body.

•	This variable force solenoid valve directly controls the hydraulic pressure inside the 35R clutch.

❮Line Pressure Control Solenoid Valve (LINE_VFS). Repair procedures

Inspection • Refer to the DTC manual for the check procedure.

35R Clutch Control Solenoid Valve (35R/C_VFS). Components and components location❯

Component Location (1)_Valve Body Cover 1. Valve Body Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector Component Location (2)_Solenoid Valve 1.
