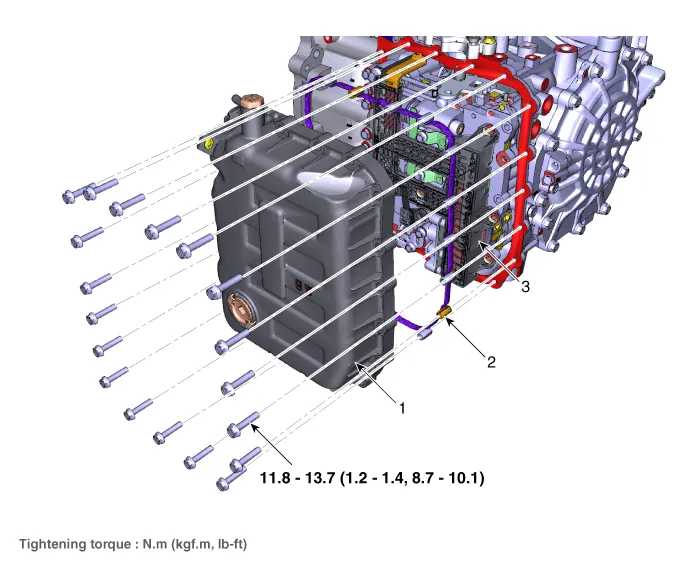

Component Location (1)_Valve Body Cover

1. Valve Body Cover
2. Valve Body Cover Gasket
3. Solenoid Valve Connector

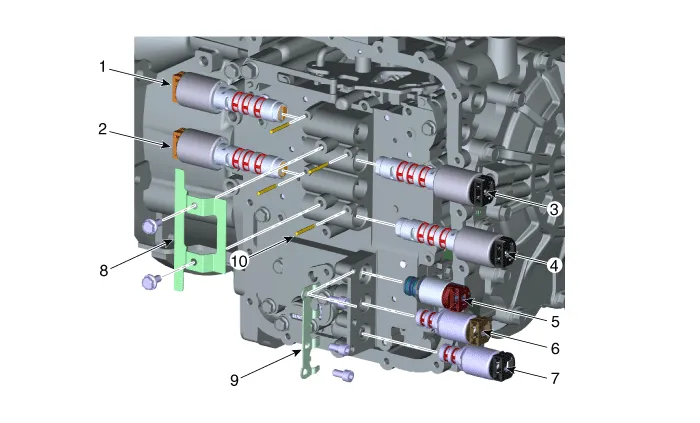

Component Location (2)_Solenoid Valve

1. 26 Brake Control Solenoid Valve
2. 35R Clutch Control Solenoid Valve
3. Underdrive Brake Control Solenoid Valve
4. Overdrive Clutch Control Solenoid Valve
5. ON/OFF Solenoid Valve
6. Torque Converter Control Solenoid Valve (Damper Clutch Control Solenoid Valve)
7. Line Pressure Control Solenoid Valve
8. Support Bracket (Direct Control Solenoid Valve)
9. Support Bracket (Indirect Control Solenoid Valve)
10. Roller

    Description • 35R Clutch control solenoid valve(35R/C) is attached to the valve body. • This variable force solenoid valve directly controls the hydraulic pressure inside the 35R clutch.

    Specifications ▷ Control type : Normally low type Shape Items Specifications Control current [mA] 0 - 1100 Supply pressure [kpa (kgf/cm², psi)] 1569.
