| Inspection |
|
| Removal |
|
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable.
|
| 2. |
Remove the air duct and the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
|
| 3. |

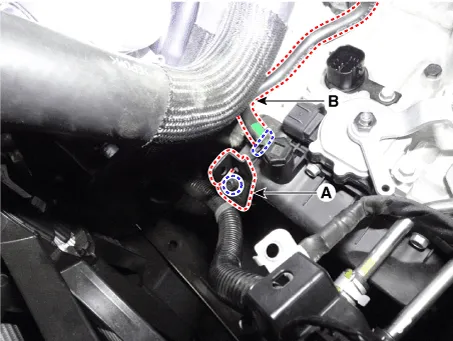

Separate the air bleed hose (B) and then wiring bracket (A).
|
| 4. |
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
|
| 5. |

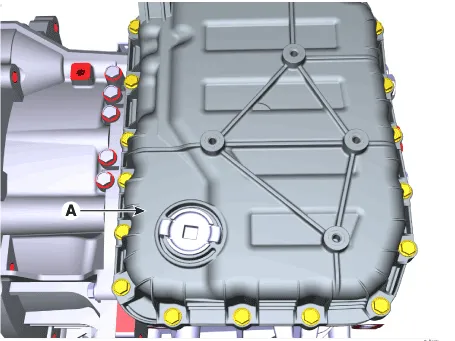

Remove the drain plug (A) and reinstall the drain plug after draining
ATF totally.
|
| 6. |

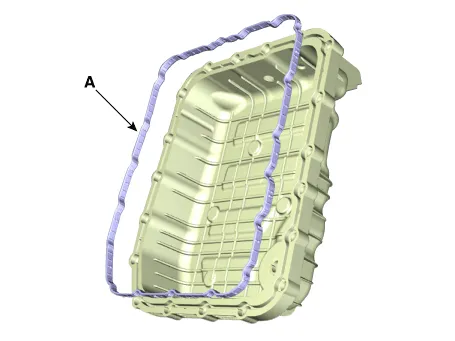

Loosen the mounting bolts (A) of the valve body cover.
|
| 7. |
Loosen the bolts and then removing the main harness (A).
|
| 8. |
Remove the support bracket (A).
|
| 9. |
Remove the roller (A) and bolt (B).
|
| 10. |
Remove the 26 brake control solenoid valve (A).
|
| Installation |
|
| 1. |
To install, reverse the removal procedure.
|
| 2. |
Inject the automatic transaxle oil and inspect the oil level.
(Refer to Automatic Transaxle System - "Automatic Transaxle Fluid (ATF)")
|
| 3. |
Clear the diagnostic trouble codes (DTC) using the diagnostic tool.
|
| 4. |

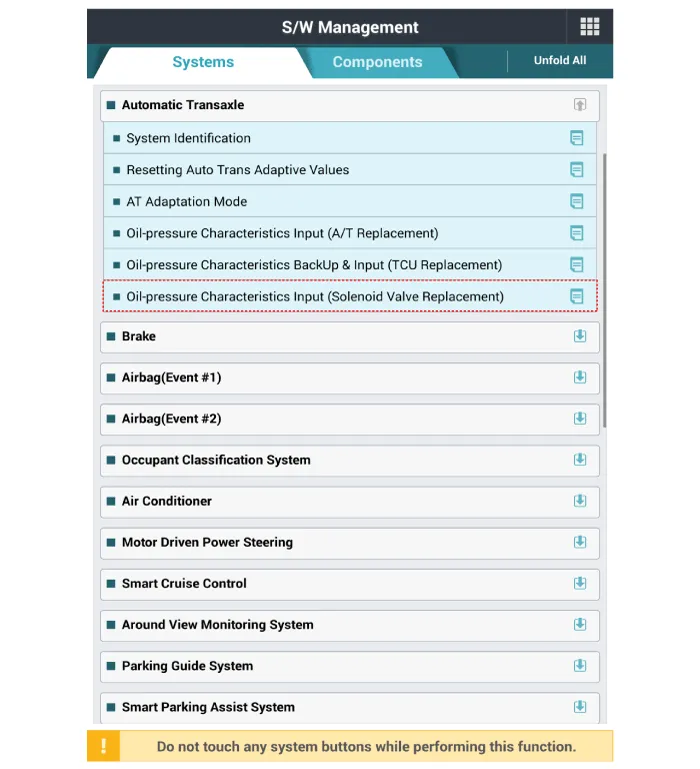

Reset the automatic transaxle adaptive values using the diagnostic tool.
|
| 5. |

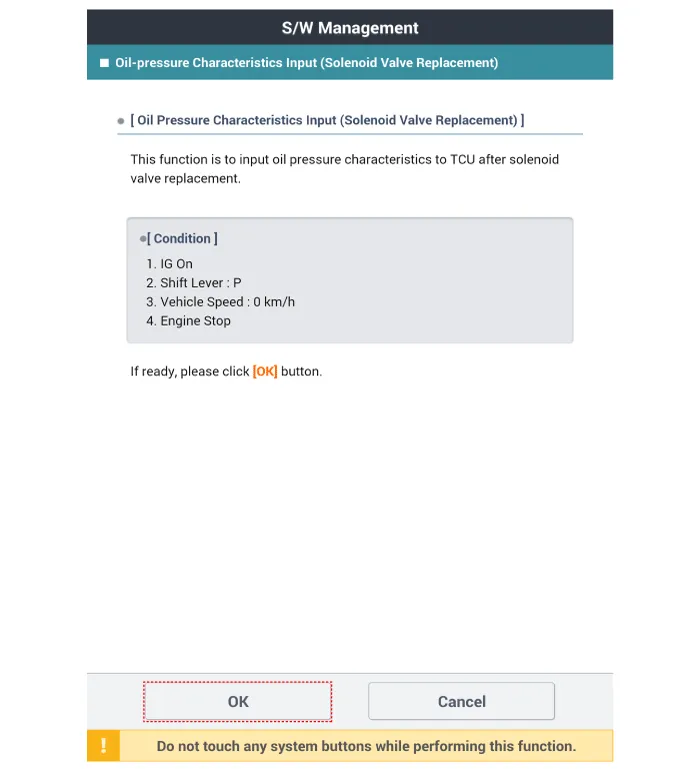

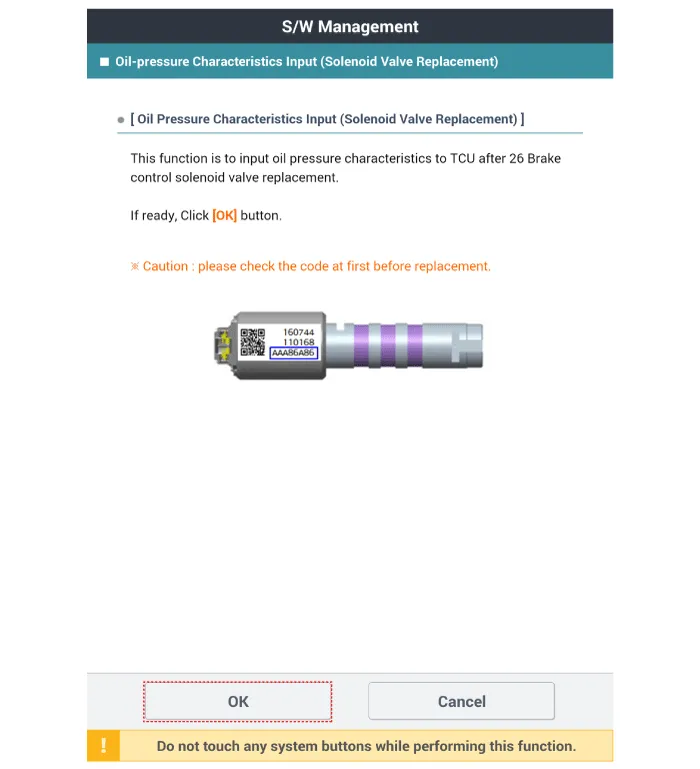

Input the oil pressure characteristics using the diagnostic tool.
|
| 6. |
In order to prevent start delay and gear shift shock during acceleration
and start, perform TCM learning after replacing the solenoid valve.
(Refer to Automatic Transaxle Control System - "Repair Procedures")
|
Specifications ▷ Control type : Normally low type Shape Items Specifications Control current [mA] 0 - 1100 Supply pressure [kpa (kgf/cm², psi)] 1569.
Description • Line pressure control solenoid valve is attached to the valve body. • This variable force solenoid valve indirectly controls the hydraulic pressure inside the line pressure.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 6.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower pannel. (Refer to Body - "Crash Pad Lower Panel") 3. Loosen the mounting screw and remove the crash pad garnish [LH] (A).
