Replacement
[Second row seat assembly]
1.

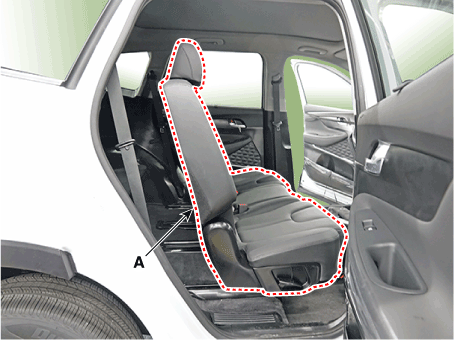

Push the second row seat assembly (A) towards the front of the vehicle as far as possible.
2.
Loosen the second center seat belt buckle mounting bolt (A).
3.
Using a screwdriver and remove the rear seat rear block cover (A).
4.

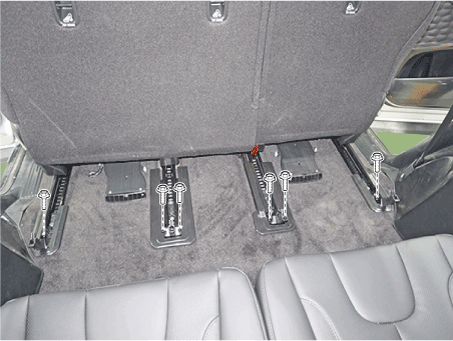

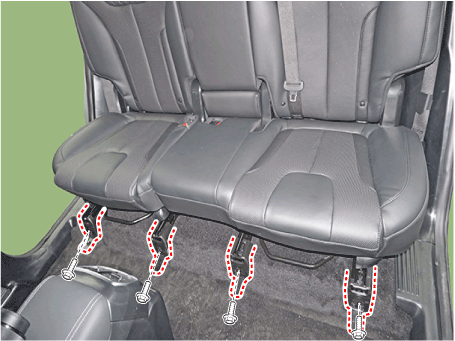

Loosen the second row seat rear mounting bolts.
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

5.
Push the second row seat assembly towards the rear of the vehicle as far as possible.
6.

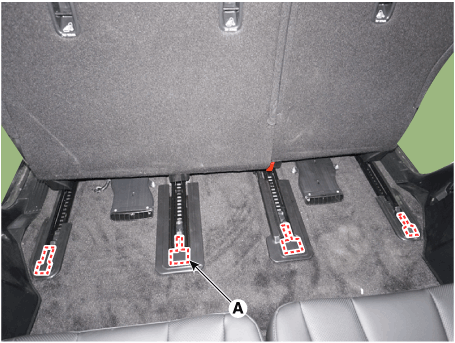

Using a screwdriver and remove the rear seat front block cover (A).
7.
Loosen the second row seat front mounting bolts.
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

8.

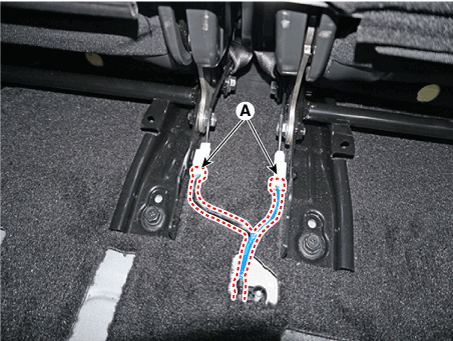

Press the lock pin and separate the connector (A).
9.
To install, reverse removal procedure.
[Third row seat assembly]
1.

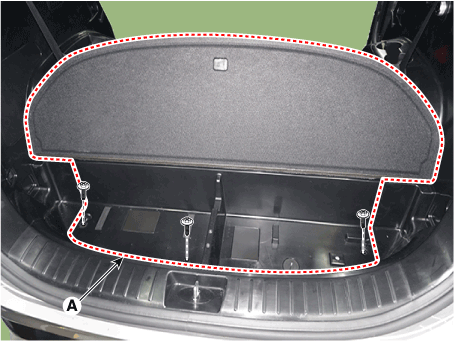

After loosening the mounting screws, then remove the luggage floor box (A).
2.

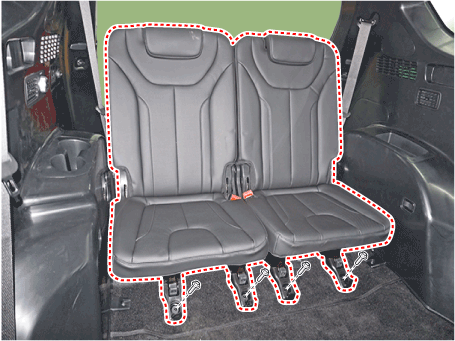

Loosen the third row seat assembly rear mounting bolts.
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

3.

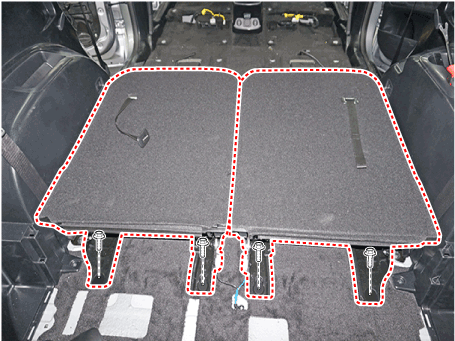

Loosen the mounting bolts and remove the third row seat assembly.
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

4.

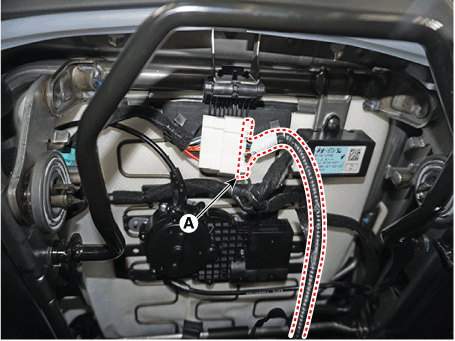

Press the lock pin and separate the connector (A).
5.
To install, reverse removal procedure.
