Hyundai Santa Fe (TM): Rear Seat / Rear Seat Assembly. Components and components location
| Component Location |

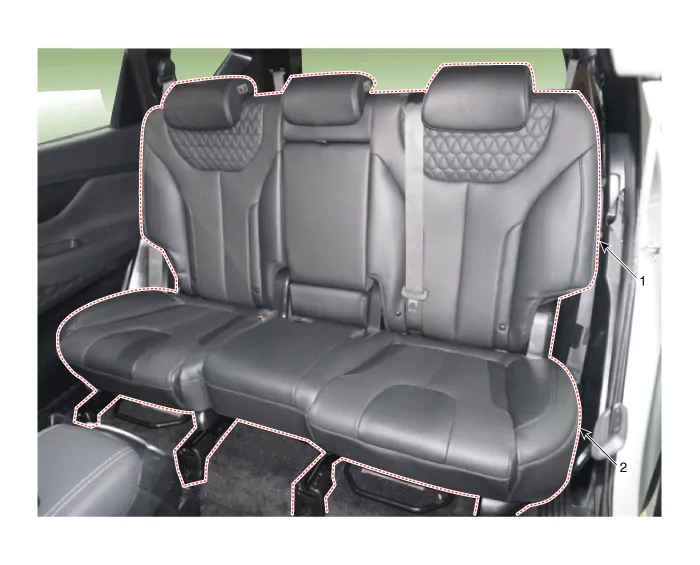

| [Second row seat assembly] |
| 1. Rear seat
back assembly |
2. Rear seat
cushion assembly |

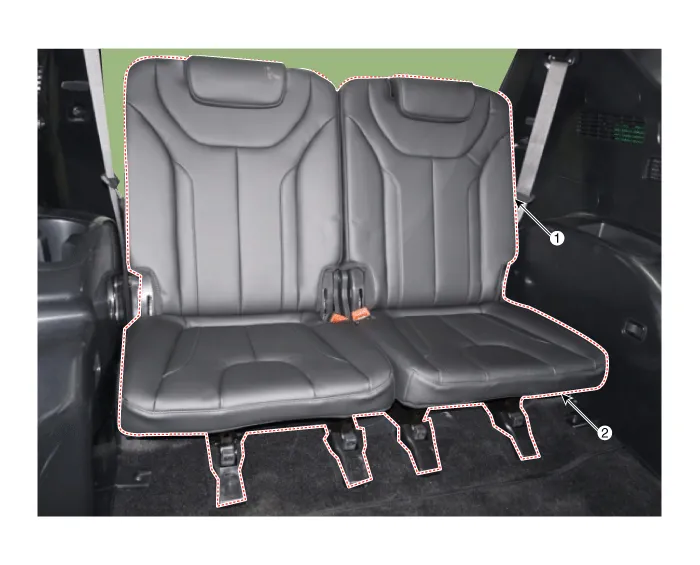

| [Third row seat assembly] |
| 1. Rear seat
back assembly |
2. Rear seat
cushion assembly |
Components [Second row seat assembly] 1. Rear seat headrest 2. Rear seat back assembly [LH] 3. Rear seat back assembly [RH] 4.
Replacement [Second row seat assembly] 1. Push the second row seat assembly (A) towards the front of the vehicle as far as possible.
