Hyundai Santa Fe: Panorama Sunroof / Panorama Sunroof Switch. Repair procedures

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch. Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

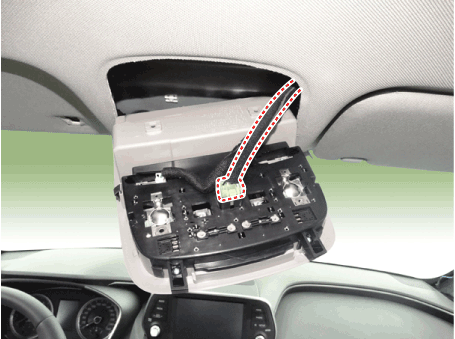

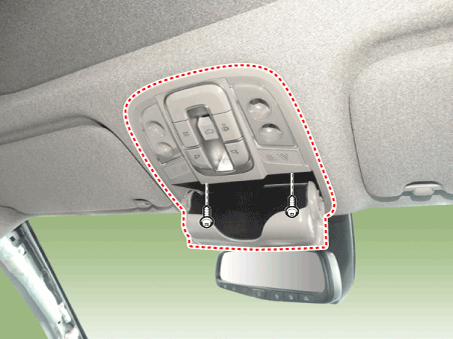

2.	Open the sunglass case cover from the overhead console then remove screws (2EA).

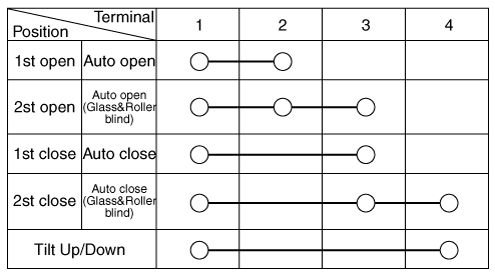

3.	Check for continuity between the terminals. If the continuity is not as specified, replace the panoramaroof switch.

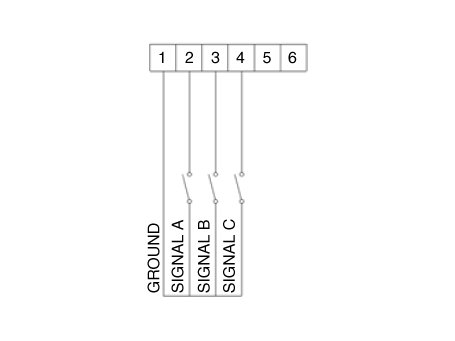

Schematic diagrams

Panorama Sunroof Motor. Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly...
