Hyundai Santa Fe (TM): Panorama Sunroof / Schematic diagrams

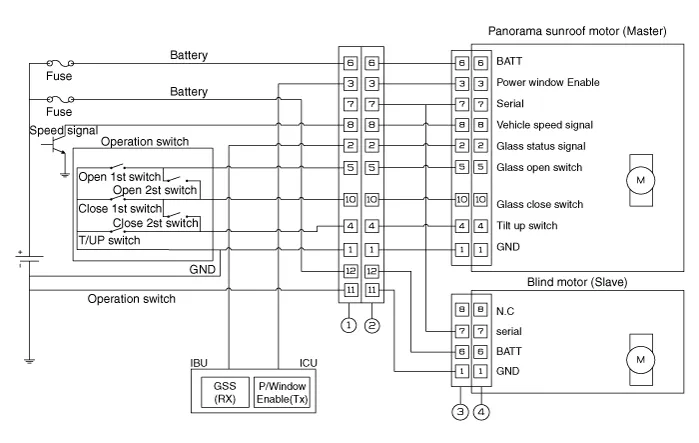

Circuit Diagram

Connector Pin Information

No	Wire harness connector	Panorama motor	Blind motor
No
1	Ground 1	Ground 1	Ground 2
2	Glass status signal / Tool fot glass	Glass status signal/ Tool (Parameter)	-
3	Power window enable	Power window enable	-
4	Tilu up switch	Tilu up switch	-
5	OPEN switch	OPEN switch	-
6	Battery 1 (+)	Battery 1 (+)	Battery2 (+)
7	Serial	Serial	Serial
8	Vehicle speed signal	Vehicle speed signal	-
9	-	Glass open switch	-
10	Glass close switch	Glass close switch	-
11	GND 2
12	Battery2 (+)
