Hyundai Santa Fe: Lubrication System / Oil Filter & Oil Cooler. Repair procedures

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Engine Mechanical System / Lubrication System / Oil Filter & Oil Cooler. Repair procedures

Removal and Installation

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Drain the engine oil.
(Refer to Lubrication System - "Engine Oil")
2.
Drain the coolant.
(Refer to Cooling System - "Coolant")
3.

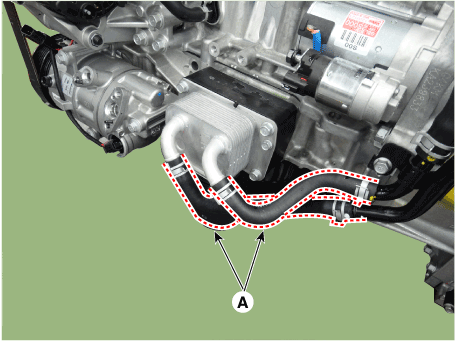

Disconnect the oil cooler hoses (A).

4.

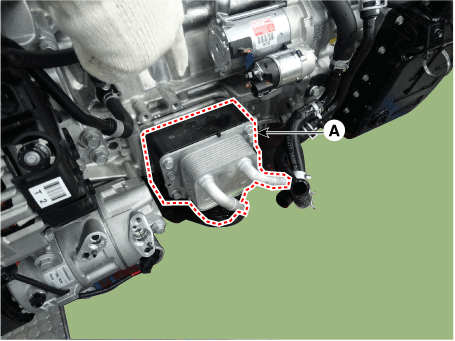

Remove the oil filter & oil cooler (A).
Tightening torque :
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)


When installing the oil filter & oil cooler assembly, check the rubber gasket.
5.
Install in the reverse order of removal.
6.
Fill with engine coolant.
(Refer to Cooling System - "Coolant")
7.
Refill engine oil.
(Refer to Lubrication System - "Engine Oil")
8.
Start engine and check for leaks.
