Hyundai Santa Fe: Driver Attention Warning (DAW) / System operation
Basic function
System display and warning
The basic function of Driver Attention Warning is to inform the driver of their
‘Attention Level’ and to warn the driver to ‘Consider taking a break’.

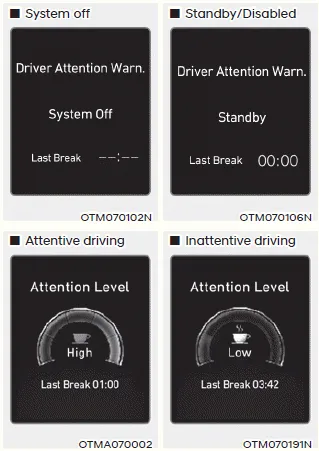

Attention level
- The driver can monitor his/her driving conditions on the cluster.
-- When the ‘Inattentive Driving Warning’ is deselected from the Settings menu,
‘System Off’ is displayed.
-- The system will operate when vehicle speed is between 0~110 mph (0~180 km/h).
-- When vehicle speed is not within the operating speed, the message ‘Standby’
(or 'Disabled') will be displayed.
- The driver’s attention level is displayed on the scale of 1 to 5. The
lower the level is, the more inattentive the driver is.
- The level decreases when the driver does not take a break for a certain
period of time.
Taking a break

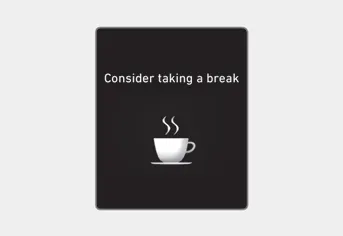

- The ‘Consider taking a break’ message will appear on the cluster and an
audible warning will sound to suggest that the driver take a break, when the
driver’s attention level is below 1.
- Driver Attention Warning will not suggest a break when the total driving
time is shorter than 10 minutes or 10 minutes has not passed after the last
break was suggested.
WARNING
For your safety, change the Settings after parking the vehicle at a safe location.
CAUTION
- Driver Attention Warning may suggest a break depending on the driver’s
driving pattern or habits, even if the driver doesn’t feel fatigued.
- Driver Attention Warning is a supplemental system and may not be able
to determine whether the driver is inattentive.
- The driver who feels fatigued should take a break at a safe location,
even though there is no break suggestion by Driver Attention Warning.
Information
- You may change settings from the instrument cluster (User Settings)
or infotainment system (Vehicle Settings), whichever option that is provided
with your vehicle. For more details, see "User Settings" section in chapter
4, or "Vehicle Settings" section in supplied Infotainment Manual.
- Driver Attention Warning will reset the last break time to 00:00 in
the following situations:
-- The engine is turned off
-- The driver unfastens the seat belt and opens the driver’s door
-- The vehicle is stopped for more than 10 minutes
- When the driver resets Driver Attention Warning, the last break time
is set to 00:00 and the driver’s attention level is set to High.
Leading Vehicle Departure Alert function

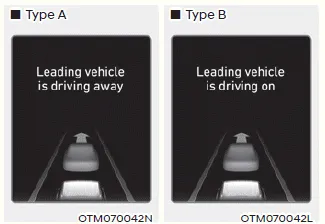

When the front vehicle departs from a stop, Leading Vehicle Departure Alert will
inform the driver by displaying the ‘Leading vehicle is driving away’ (or ‘Leading
vehicle is driving on’) message on the cluster and an audible warning will sound.
WARNING
- If any other system’s warning message is displayed or audible warning
is generated, Leading Vehicle Departure Alert's warning message may not be displayed
and audible warning may not be generated.
- The driver should hold the responsibility to safely drive and control
the vehicle.
CAUTION
- Leading Vehicle Departure Alert is a supplemental function and may
not alert the driver whenever the front vehicle departs from a stop.
- Always check the front of the vehicle and road conditions before departure.
Setting functions for the system
Driver Attention Warning
With the engine on, select ‘Driver Assistance → Driver Attention Warning (or
DAW (Driver Attention Warning))’ from the Settings menu to set whether or not to
use each function...
System malfunction
When Driver Attention Warning is not working properly, the ‘Check Driver Attention
Warning (DAW) system’ warning message will appear on the cluster...
