Hyundai Santa Fe: IMS (Integrated Memory) / IMS (Integrated Memory System) module. Components and components location

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS (Integrated Memory System) module. Components and components location

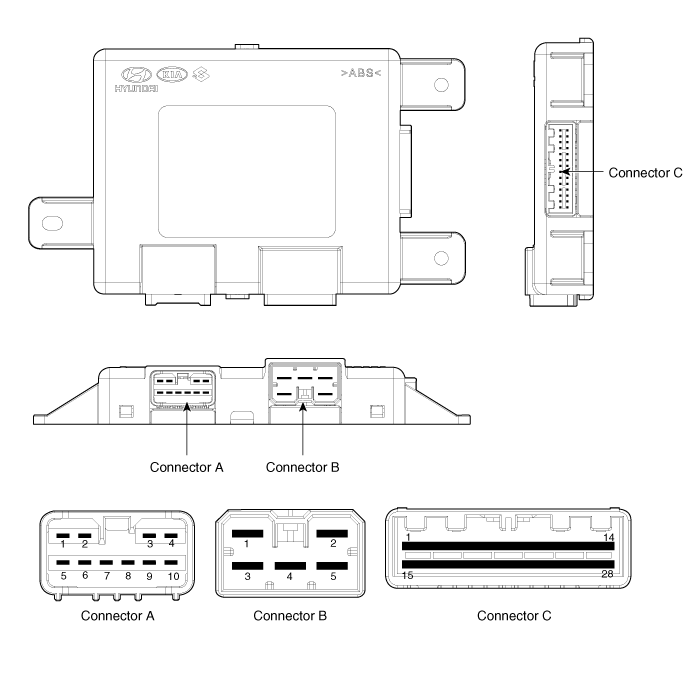

Components

IMS input/output pin information

No	Connector A	Connector B	Connector C
1	Cushion extension moter (Forward)	B+ (Power)	Seat slide motor switch (Forward)
2	Seat recline motor (Forward)	Ground (Power)	Seat recline switch (Forward)
3	Seat height motor (Up)	B+ (Power)	Seat tilt switch (Up)
4	Seat slide motor(Forward)	-	Seat height switch (Up)
5	Seat Cushion extension moter (Backward)	Ground	Seat cushion extension switch (Forward)
6	Seat recline motor (Backward)		B_CAN (High)
7	Seat tilt motor (Up)		B_CAN (Low)
8	Seat tilt motor (Down)		Driver lumber support motor (Up)
9	Seat height motor (Down)		Driver lumber support motor (Mid)
10	Seat slide motor (Backward)		Seat slide sensor
11			Seat tilt sensor
12			Seat recline limit switch (Forward)
13			Seat position sensor power
14			IGN 1
15			Seat slide switch (Backward)
16			Seat recline switch (Backward)
17			Seat tilt switch (Down)
18			Seat height switch (Down)
19			Seat cushion extension switch (Backward)
20			Ground
21			Driver lumber support motor (Low)
22			-
23			Driver lumber support motor (Def)
24			Seat recline sensor
25			Seat height sensor
26			Seat cushion extension limit sensor
27			Seat recline limit switch (Backward)
28			Battery (+)

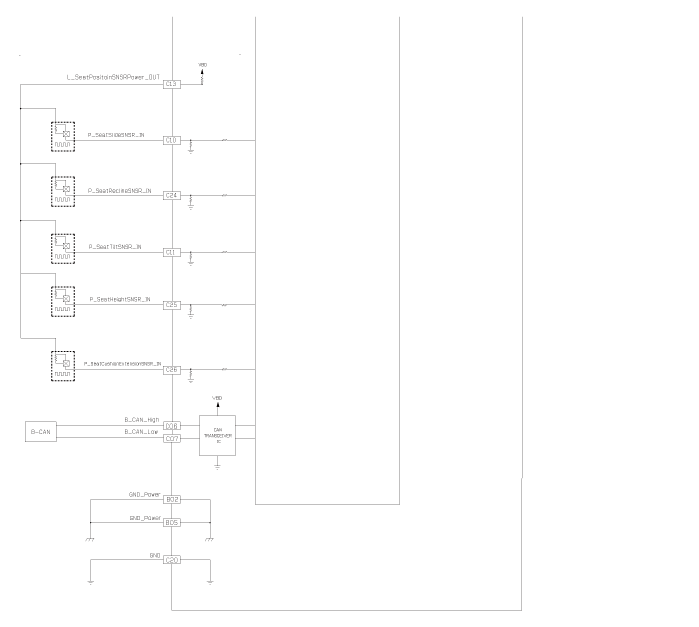

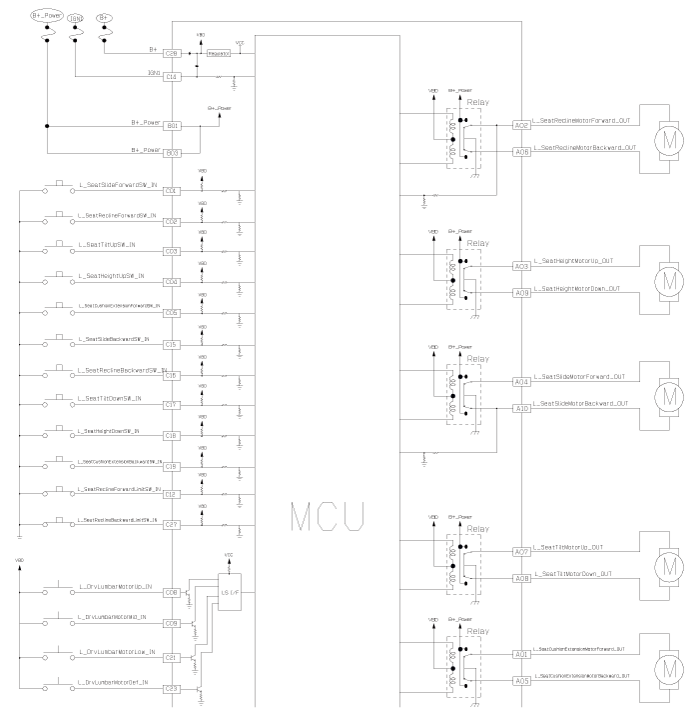

Circuit Diagram

Schematic diagrams

IMS (Integrated Memory System) module. Repair procedures

Removal 1. Remove the negative (-) battery terminal. 2. Remove the front seat assembly...
