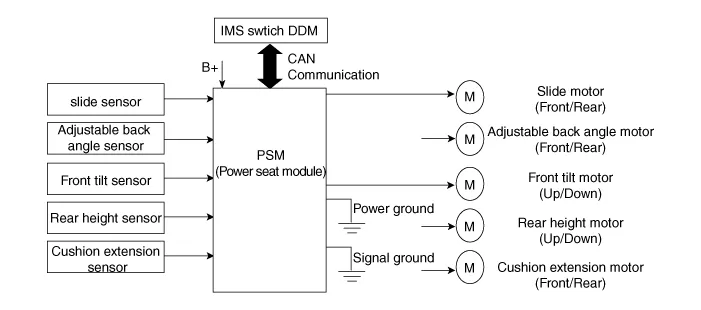

| Circuit Diagram |

Specifications Memory Power Seat Unit Item Specification Rating voltage DC 12V Operation voltage DC 9V - 16V Operation temperaure -30°C to 75°C parastic current Max.
Components IMS input/output pin information No Connector A Connector B Connector C 1 Cushion extension moter (Forward) B+ (Power) Seat slide motor switch (Forward) 2 Seat recline motor (Forward) Ground (Power) Seat recline switch (Forward) 3 Seat height motor (Up) B+ (Power) Seat tilt switch (Up) 4 Seat slide motor(Forward) - Seat height switch (Up) 5 Seat Cushion extension moter (Backward) Ground Seat cushion extension switch (Forward) 6 Seat recline motor (Backward) B_CAN (High) 7 Seat tilt motor (Up) B_CAN (Low) 8 Seat tilt motor (Down) Driver lumber support motor (Up) 9 Seat height motor (Down) Driver lumber support motor (Mid) 10 Seat slide motor (Backward) Seat slide sensor 11 Seat tilt sensor 12 Seat recline limit switch (Forward) 13 Seat position sensor power 14 IGN 1 15 Seat slide switch (Backward) 16 Seat recline switch (Backward) 17 Seat tilt switch (Down) 18 Seat height switch (Down) 19 Seat cushion extension switch (Backward) 20 Ground 21 Driver lumber support motor (Low) 22 - 23 Driver lumber support motor (Def) 24 Seat recline sensor 25 Seat height sensor 26 Seat cushion extension limit sensor 27 Seat recline limit switch (Backward) 28 Battery (+) Circuit Diagram
Replacement 1. Remove the rear heater & A/C unit. (Refer to Rear Heater - "Rear Heater Unit") 2. Loosen the mounting screws and remove the rear A/C lower case (A).
