Hyundai Santa Fe: Rear Door / Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

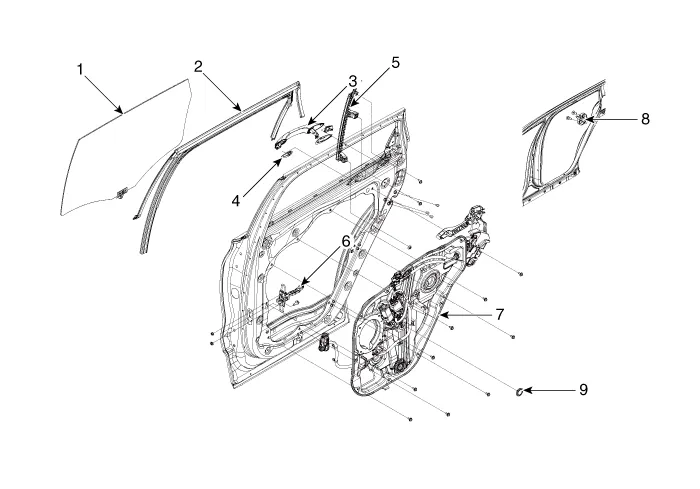

Components

1. Rear door window glass
2. Rear door window glass run assembly
3. Rear door outside handle
4. Rear door outside handle pad
5. Rear door channel
 6. Rear door checker assembly
7. Rear door module assembly
8. Rear door striker
9. Rear door module plug hole

    Rear Door

    ..

    Repair procedures

    Adjustment Glass Adjustment    • Check the glass run channel for damage or deterioration, and replace them if necessary...
