Hyundai Santa Fe: Differential Carrier Assembly / Components and components location
Hyundai Santa Fe (TM) 2019-2025 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Components and components location

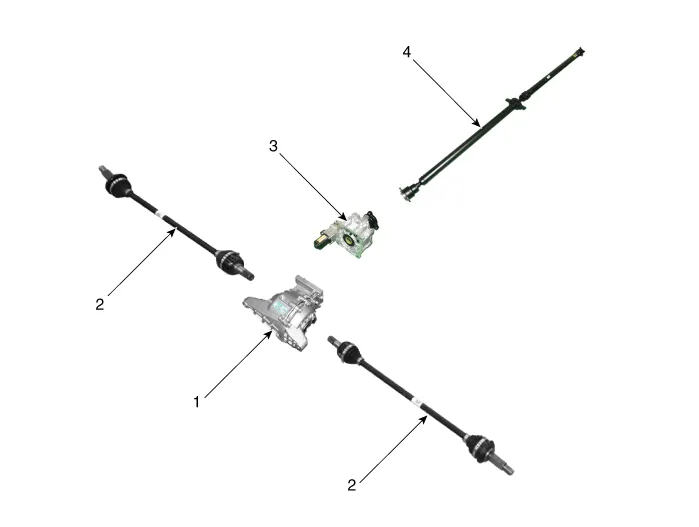

| Components Location |
| 1. Rear differential
carrier assembly 2. Rear driveshaft assembly |
3. Coupling Assembly 4. Propeller shaft assembly |

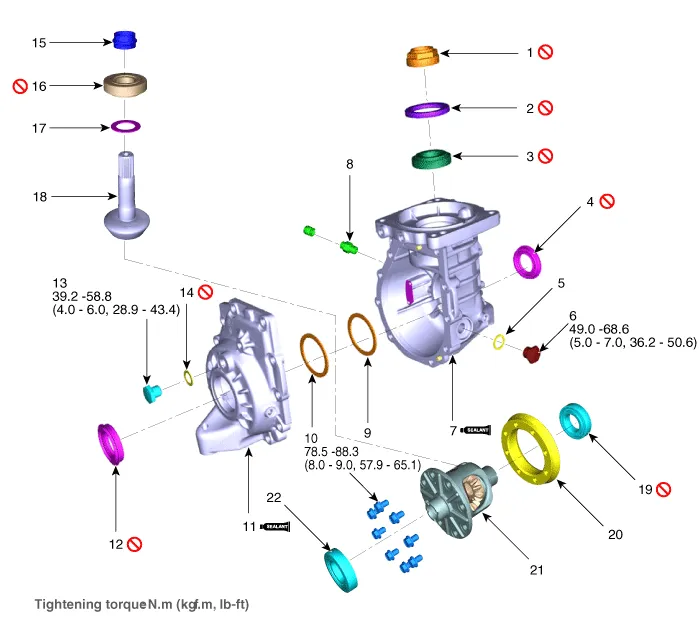

| Components |
| 1. Pinion lock
nut 2. Oil seal (pinion side) 3. Pinion outer bearing 4. Oil seal (case side) 5. Packing 6. Drain plug 7. Differential carrier case 8. Air breather 9. Differential bearing shim (case side) 10. Differential bearing shim (cover side) 11. Differential carrier case side cover |
12. Oil seal
(cover side) 13. Filler plug 14. Filler gasket 15. Pinion bearing spacer 16. Pinion inner bearing 17. Pinion inner bearing adjust shim 18. Pinion drive gear 19. Differential gear bearing (case side) 20. Ring gear 21. Gear carrier 22. Differential gear bearing (cover side) |
Repair procedures
Removal
•
Be careful not to damage the parts located under the vehicle
(floor under cover, fuel filter, fuel tank and canister) when
raising the vehicle using the lift...
