Hyundai Santa Fe (TM): Panorama Sunroof / Components and components location

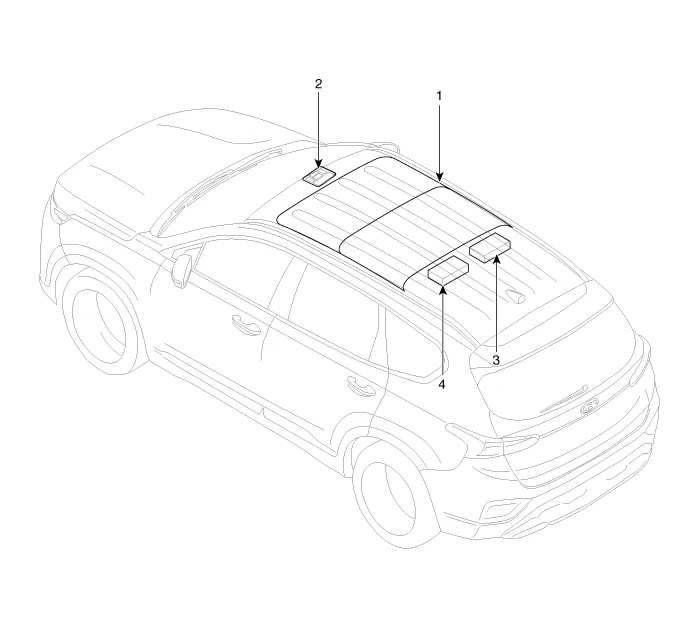

| Component Location |
| 1. Panorama sunroof 2. Panorama sunroof switch |
3. Panorama sunroof
motor & controller 4. Roller blind motor & slave controller |
Circuit Diagram Connector Pin Information No Wire harness connector Panorama motor Blind motor 1 Ground 1 Ground 1 Ground 2 2 Glass status signal / Tool fot glass Glass status signal/ Tool (Parameter) - 3 Power window enable Power window enable - 4 Tilu up switch Tilu up switch - 5 OPEN switch OPEN switch - 6 Battery 1 (+) Battery 1 (+) Battery2 (+) 7 Serial Serial Serial 8 Vehicle speed signal Vehicle speed signal - 9 - Glass open switch - 10 Glass close switch Glass close switch - 11 GND 2 　 　 12 Battery2 (+)
