Hyundai Santa Fe: Wiper blades / Blade replacement

Hyundai Santa Fe (TM) 2019-2024 Owner's Manual / Maintenance / Wiper blades / Blade replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

NOTICE

  • • In order to prevent damage to the hood and the wiper arms, the wiper arms should only be lifted when in the top wiping position.
  • • Always return the wiper arms to the windshield before driving.

Front windshield wiper service positions

This vehicle has a “hidden” wiper design which means that the wipers cannot be lifted when they are in their bottom resting position.

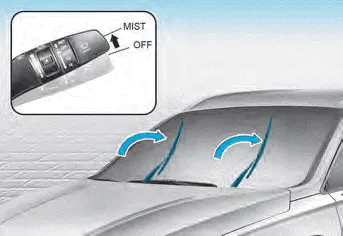

1. Within 20 seconds of turning off the engine, lift and hold the wiper lever up to the MIST (or down to the V) position for about 2 seconds until the wipers move to the top wipe position.

2. At this time you can lift the wipers off the windshield.

3. Gently put the wipers back down onto the windshield.

4. Turn the wipers to any ON position to return the wipers to the bottom resting position.

Type A

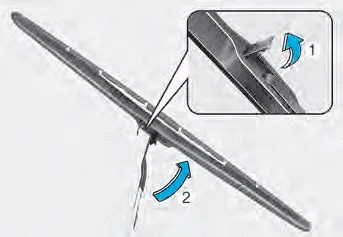

1. Lift up the wiper blade clip. Then lift up the wiper blade.

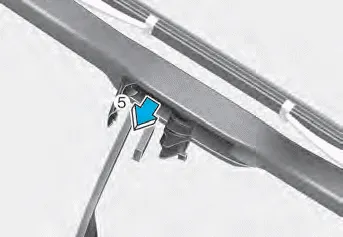

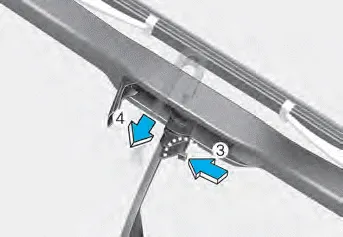

2. While pushing the lock (1), pull down the wiper blade (2).

3. Remove the wiper blade from the wiper arm.

4. Install a new wiper blade assembly in the reverse order of removal.

5. Return the wiper arm on the windshield.

Type B

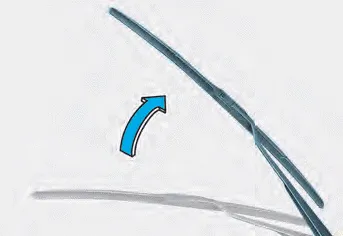

1. Raise the wiper arm.

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

3. Install the new blade assembly in the reverse order of removal.

4. Return the wiper arm on the windshield.

Rear window wiper blade replacement

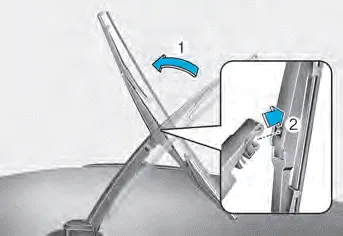

1. Raise the wiper arm and then rotate the wiper blade assembly (1).

2. Pull out the wiper blade assembly (2).

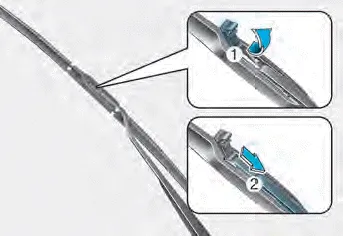

3. Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place (3).

4. Make sure the blade assembly is installed firmly by trying to pull it slightly.

5. Rotate back the blade assembly so that it aligns with the wiper arm.

To prevent damage to the wiper arms or other components, we recommend that you have the wiper blades replaced by an authorized HYUNDAI dealer.
