Hyundai Santa Fe: Ignition Coil / Troubleshooting

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Engine Electrical System / Ignition System / Ignition Coil / Troubleshooting

Troubleshooting
Connector assembly status test
1.
Remove the ignition coil connectors (A) and reinstall it.

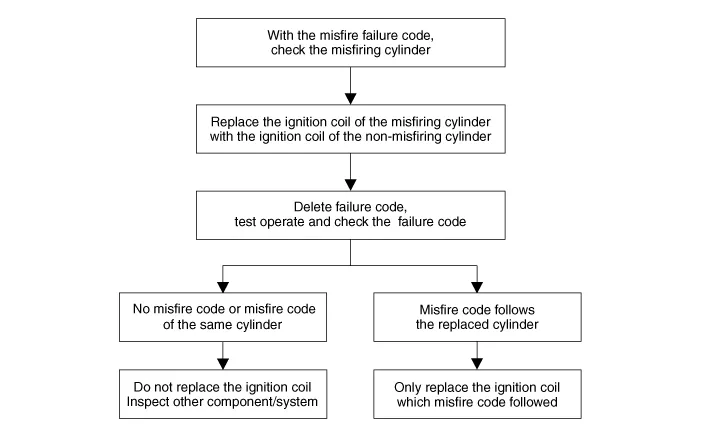

Test for changing position of each ignition coil
A : Ignition coil w/ misfire code
B : Ignition coil w/o misfire code

Do not move with spark plug at the same time (move the ignition coil only)

    Description and operation

    Description The ignition coil is mounted on the top side of the cylinder head cover end. The ignition coil consists of the primary coil that receives battery power and the secondary coil that generates high voltage...

    Specifications

    Specification Item Specification Rated Voltage (V) 13.5V Secondary Coil [Engine 1000RPM standard] Input voltage (V) 13...
