Hyundai Santa Fe (TM): Convenience features / Wipers and washers

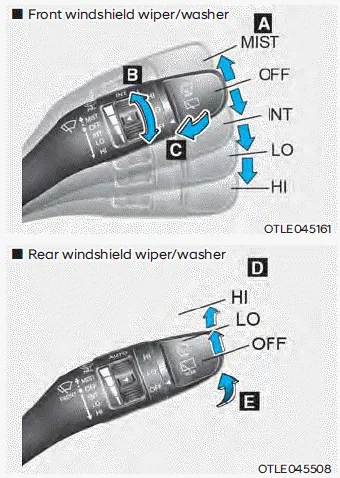

A. Wiper speed control (front)

• Windshield wipers

  Operates as follows when the ignition switch is turned ON.

  MIST : For a single wiping cycle, move the lever upward and release it. The wipers will operate continuously if the lever is held in this position.

  OFF : Wipers are not in operation.

  INT : Wipers operate intermittently at the same wiping intervals. Use this mode in light rain or mist. To vary the speed setting, turn the speed control knob.

  LO : The wiper runs at a lower speed.

  HI : The wiper runs at a higher speed.

  Information

  If there is heavy accumulation of snow or ice on the windshield, defrost the windshield for about 10 minutes, or until the snow and/or ice is removed before using the windshield wipers to ensure proper operation.

  If you do not remove the snow and/or ice before using the wiper and washer, it may damage the wiper and washer system.

  AUTO (Automatic) control

  The rain sensor located on the upper end of the windshield glass senses the amount of rainfall and controls the wiping cycle for the proper interval.

  The wiper operation time will be automatically controlled depends on rainfall.

  When the rain stops, the wiper stops.

  To vary the sensitivity setting, turn the sensitivity control knob.

  If the wiper switch is set in AUTO mode when the Engine Start/Stop button is in the ON position, the wiper will operate once to perform a self-check of the system. Set the wiper to the OFF (O) position when the wiper is not in use.

  WARNING

  To avoid personal injury from the windshield wipers, when the engine is running and the windshield wiper switch is placed in the AUTO mode:

  • Do not touch the upper end of the windshield glass facing the rain sensor.
  • Do not wipe the upper end of the windshield glass with a damp or wet cloth.
  • Do not put pressure on the windshield glass.

  NOTICE

  • When washing the vehicle, set the wiper switch in the OFF (O) position to stop the auto wiper operation. The wiper may operate and be damaged if the switch is set in the AUTO mode while washing the vehicle.
  • Do not remove the sensor cover located on the upper end of the passenger side windshield glass. Damage to system components could occur and may not be covered by your vehicle warranty.
  • Because of using a photo sensor, temporary malfunction could occur according to sudden ambient light change made by stone and dust while driving.

  Front windshield washers



  In the OFF position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles. The spray and wiper operation will continue until you release the lever. If the washer does not work, you may need to add washer fluid to the washer fluid reservoir.

  WARNING

  When the outside temperature is below freezing, ALWAYS warm the windshield using the defroster to help prevent the washer fluid from freezing on the windshield and obscuring your vision which could result in an accident and serious injury or death.

  NOTICE

  • To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
  • To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.
  • To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
  • To prevent possible damage to the wipers and washer system, use antifreezing washer fluids in the winter season or cold weather.

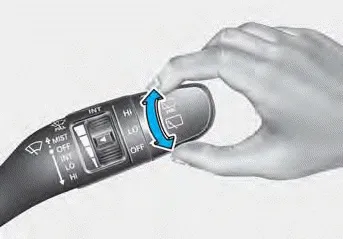

  Rear window wiper and washer



  The rear window wiper and washer switch is located at the end of the wiper and washer switch lever. Turn the switch to the desired position to operate the rear wiper and washer.

  HI – High wiper speed

  LO – Low wiper speed

  OFF – Off

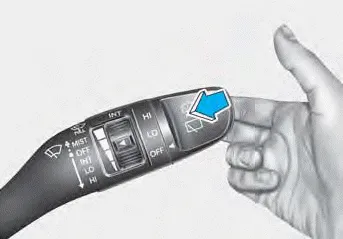

  Push the lever away from you to spray rear washer fluid and to run the rear wipers 1~3 cycles. The spray and wiper operation will continue until you release the lever.

  Auto rear wiper (if equipped)

  The rear wiper will operate while the vehicle is in reverse with the front wiper ON by selecting the function from the Settings menu on the LCD display. Select:

  - Setup -> User Settings -> Convenience -> Auto Rear Wiper (in R)
