Hyundai Santa Fe (TM): Hydraulic System / Valve Body. Components and components location
| Components Location |

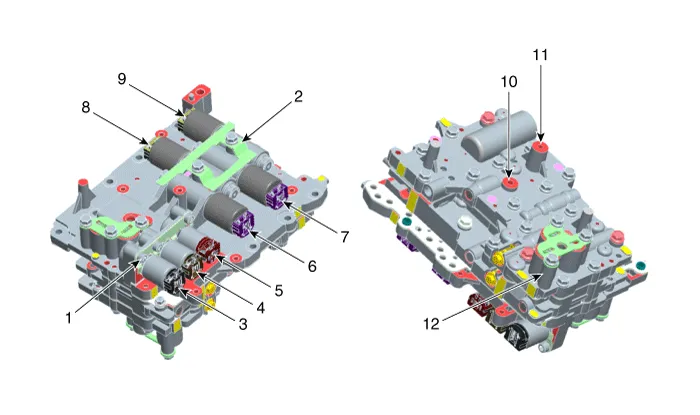

| 1. Solenoid valve
support bracket 2. Solenoid valve support bracket (Directly solenoid) 3. Line Pressure Control Solenoid Valve 4. Torque Convert Control Solenoid Valve (T/CON) 5. ON/OFF solenoid valve 6. Overdrive Clutch Control Solenoid Valve (OD/C) |
7. Underdrive
Brake Control Solenoid Valve (UD/B) 8. 35R Clutch Control Solenoid Valve (35R/C) 9. 26 Brake Control Solenoid Valve (26B) 10. LR/B pressure flow hole 11. UD/B pressure flow hole 12. Accumulator |
Description • The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump.
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
