Hyundai Santa Fe (TM): Instrument cluster / Transmission shift indicator

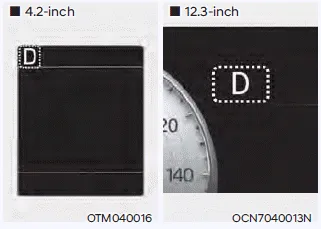

Automatic transmission / Dual clutch transmission shift indicator
This indicator informs the current gear engaged.
Speedometer The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (MPH) and/or kilometers per hour (km/h). Tachometer The tachometer indicates the approximate number of engine revolutions per minute (rpm).
Information Make sure that all warning lights are OFF after starting the engine. If any light is still ON, this indicates a situation that needs attention.
