Hyundai Santa Fe (TM): Automatic Transaxle Control System / Transaxle Oil Temperature Sensor. Specifications

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Automatic Transaxle System (SBC) / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor. Specifications

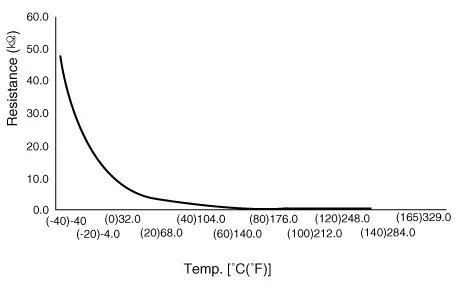

Specifications
â–· Type : Negative Thermal Coefficient Type
Temp.[(°C)°F]
Resistance (Ω)
Min
Max
(-40) -40
 48153
 45301
 51006
(-20) -4.0
 15614
 14785
 16443
(0) 32.0
 5887
 5605
 6168
(20) 68.0
 2510.6
 2401.9
 2619.3
(40) 104.0
 1199.6
 1152.4
 1246.7
(60) 140.0
 612.3
 590.3
 634.2
(80) 176.0
 329.5
 318.7
 340.3
(100) 212.0
 186
 180.4
 191.6
(120) 248.0
 109.7
 106.1
 113.2
(140) 284.0
 67.16
 64.82
 69.5
(150) 302.0
 53.24
 51.32
 55.16

    Description • Transaxle oil temperature sensor monitors the automatic transaxle fluid's temperature and conveys the readings to TCM.

    Inspection    • Refer to the DTC manual for the check procedure.
