Hyundai Santa Fe (TM): Emergency situations / Tire Pressure Monitoring System (TPMS)

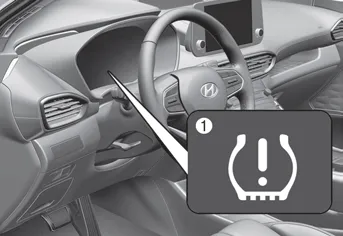

(1) Low Tire Pressure Telltale/TPMS Malfunction Indicator

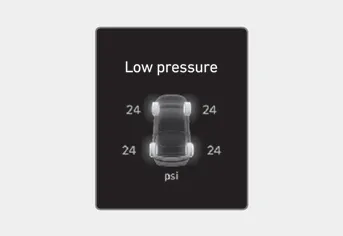

(2) Low Tire Pressure Position Telltale and Tire Pressure Telltale (Shown on the LCD display)
- Check tire pressure
- Tire pressure monitoring system
- Low tire pressure position and tire pressure telltale
- TPMS malfunction indicator
- Changing a tire with TPMS
If your temperature gauge indicates overheating, you experience a loss of power, or hear loud pinging or knocking, the engine may be overheating. If this happens, you should: 1.

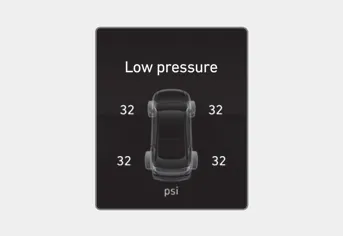

You can check the tire pressure in the Warning mode on the cluster. Refer to the “LCD Display Modes” in chapter 4. Tire pressure is displayed after a few minutes of driving after initial engine start up.
