Hyundai Santa Fe (TM): Hydraulic System / SS-A Solenoid Valve (ON/OFF). Components and components location
| Component Location (1)_Valve Body Cover |

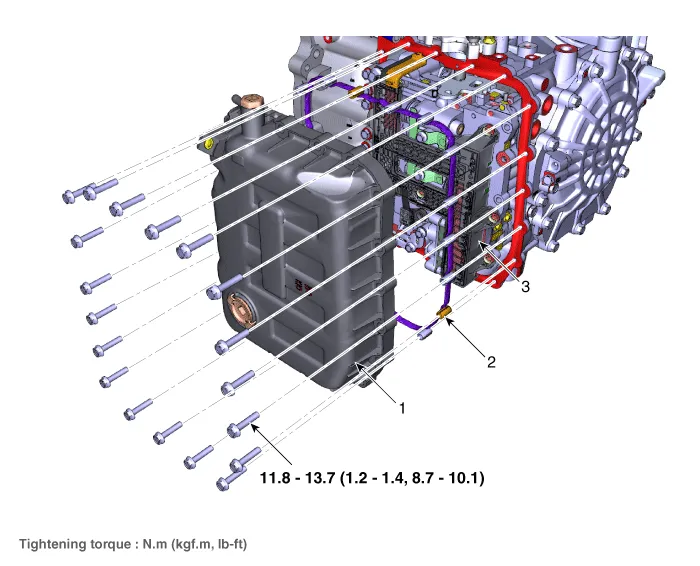

| 1. Valve Body
Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector |
| Component Location (2)_Solenoid Valve |
| 1. 26 Brake

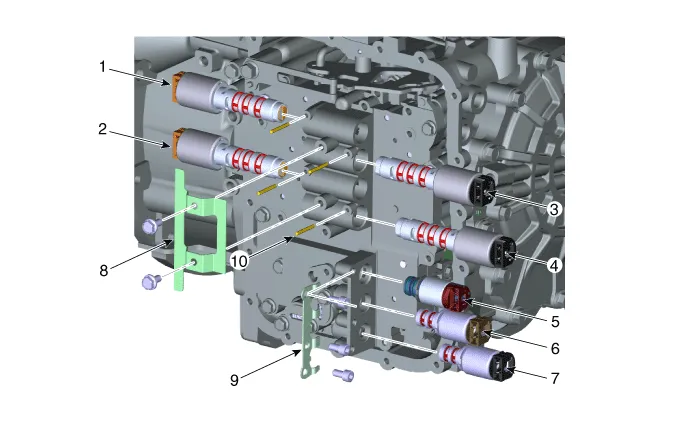

Control Solenoid Valve 2. 35R Clutch Control Solenoid Valve 3. Underdrive Brake Control Solenoid Valve 4. Overdrive Clutch Control Solenoid Valve 5. ON/OFF Solenoid Valve 6. Torque Converter Control Solenoid Valve (Damper Clutch Control Solenoid Valve) 7. Line Pressure Control Solenoid Valve 8. Support Bracket (Direct Control Solenoid Valve) 9. Support Bracket (Indirect Control Solenoid Valve) 10. Roller |
Description • SS-A solenoid valve is attached to the valve body and is an on/off solenoid valve that is used to change gears.
Specifications ▷ Control type : Normally low type Shape Items Specifications Control voltage [V] 9 - 16 Supply pressure [kpa (kgf/cm², psi)] 490.
