| Smart Key |
| 1. |

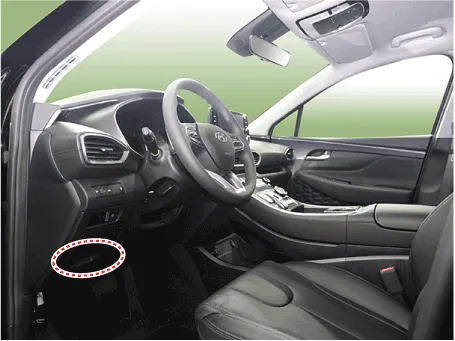

Connect the DLC cable of diagnostic tool to the data link connector
(16 pins) in driver side crash pad lower panel, turn the power on diagnostic
tool.
|
| 2. |
Select the 'S/W Management' and 'Car model'.
|
| 3. |

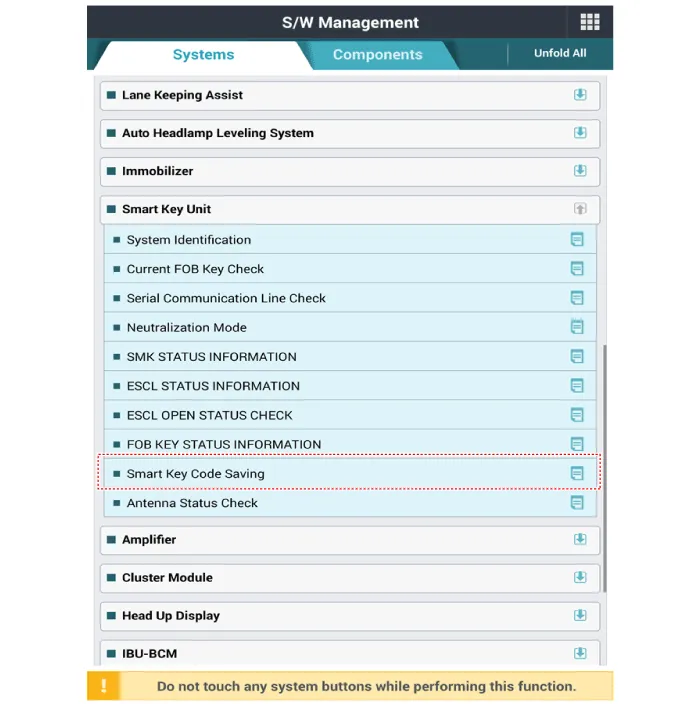

Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
|
| 4. |

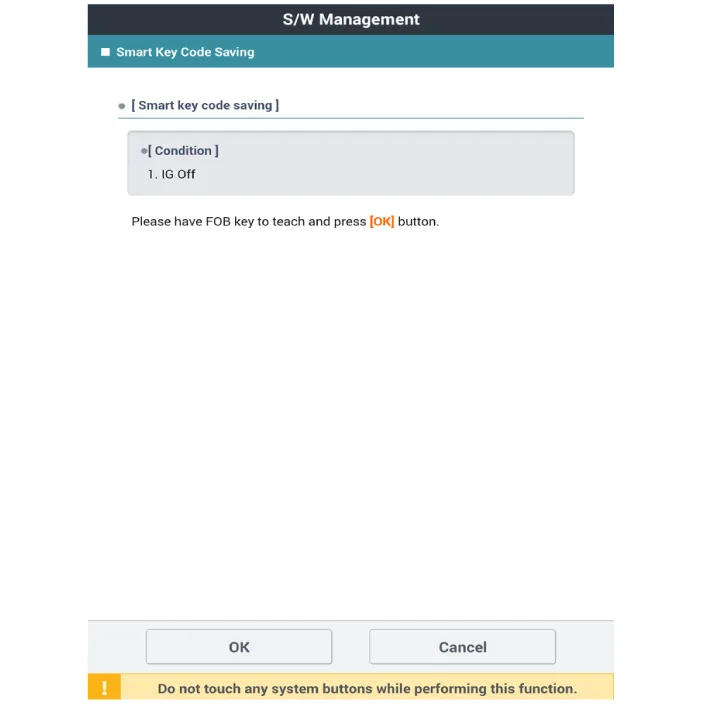

Follow the instructions on the screen.
|
