Removal
1.
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2.

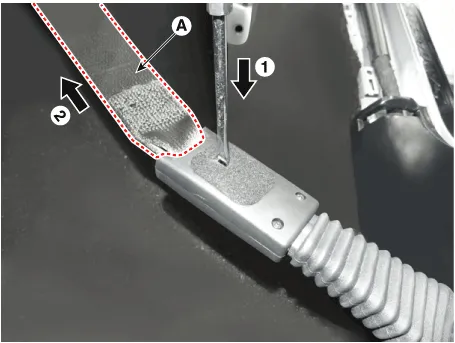

Remove the front anchor seat belt (A).
3.
Remove the center pillar lower trim.
(Refer to Body - "Center Pillar Trim")
4.
Remove the center pillar upper trim.
(Refer to Body - "Center Pillar Trim")
5.

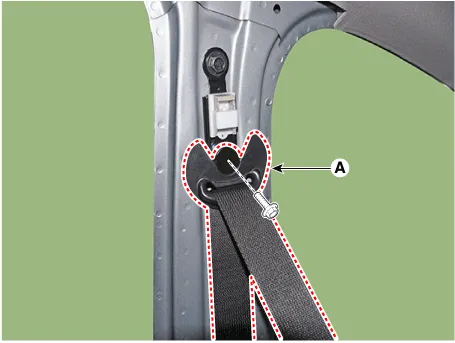

After loosening the mounting bolt, then remove the front seat belt lower anchor (A).
6.

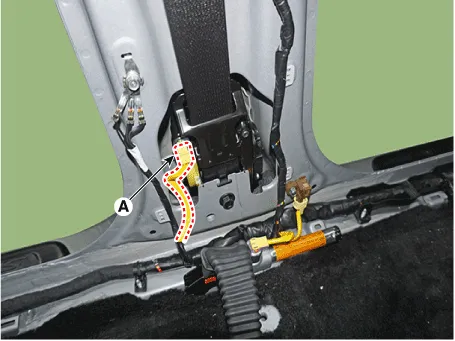

Disconnect the seat belt pretensioner connector (A) and then remove the seat belt pretensioner.
7.

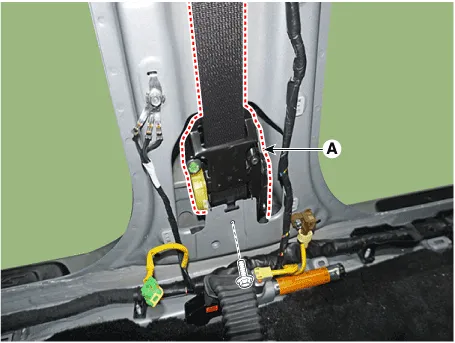

Remove the seat belt pretensioner (A) after loosening the mouning bolts.
Installation
1.
Disconnect the battery negative cable and wait for at least three minutes.
2.
Install the seat belt pretensioner.
Tightening torque
Bolt (A) : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt (B) : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
Install the front seat belt upper anchor bolt.
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

4.
Install the center pillar trim.
(Refer to Body - "Center Fillar Trim")
5.
Install the door scuff trim.
(Refer to Body - "Door Scuff Trim")
6.
Reconnect the battery negative cable.
7.
After installing the seat belt pretensioner, confirm proper system operation:
•
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

    Components 1. Front Seat Belt Pretensioner (BPT)

    Description The Emergency Fastening Device (EFD) operates at the same time with the Seat Belt Pretensioner when it satisifies the deployment condition after a collision.
