Hyundai Santa Fe (TM): Fuel Delivery System / Release residual pressure in fuel line
| Release Residual Pressure in Fuel Line |
|
| 1. |
Turn the ignition switch OFF and disconnect the battery (-) cable.
|
| 2. |

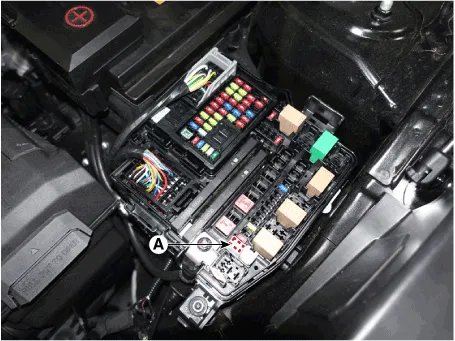

Remove the fuel pump fuse (A).
|
| 3. |
Connect the battery (-) cable.
|
| 4. |
Start the engine and let idle, and then turn the ignition switch OFF
after the engine has stopped on its own.
|
| 5. |
Disconnect the battery (-) cable, and then install the fuel pump fuse.
|
| 6. |
Connect the battery (-) cable.
|
| 7. |
Delete the Diagnostic Trouble Code (DTC) related the fuel pump fuse
with the diagnostic tool.
|
