Replacement

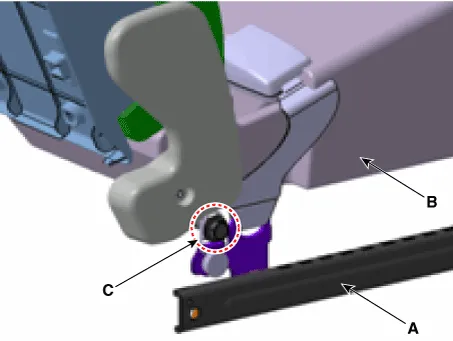

[Second row seat belt buckle]

•
Be sure to remove the second row center seat belt buckle (A) and the second row seat assembly [RH] (B) after removing the second row seat assembly [LH / RH].
1)
Second row seat assembly [LH] is positioned at the rearside, and second row seat assembly [RH] is positioned at the frontside.
2)
Loosen the mounting bolt (C) and remove the second row center seat belt buckle and the second row seat assembly [LH].
[Center]
1.
Remove the second row seat assembly [RH].
(Refer to Rear Seat -"Rear Seat Assembly")
2.

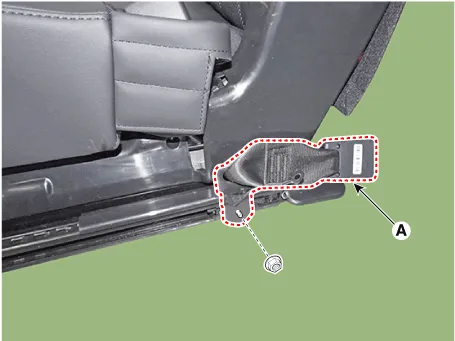

Loosen the mounting nut and remove the second row seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

3.
To install, reverse removal procedure.
[RH]
1.
Remove the second row seat assembly [RH].
(Refer to Rear Seat -"Rear Seat Assembly")
2.

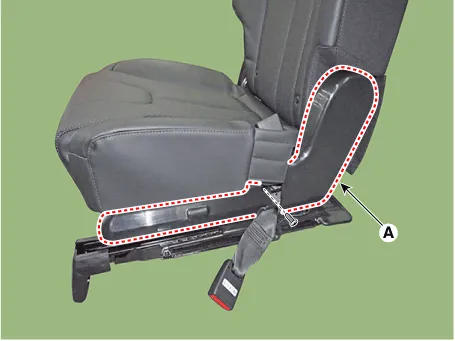

Loosen the mounting screw and remove the rear seat inner cover (A).
3.

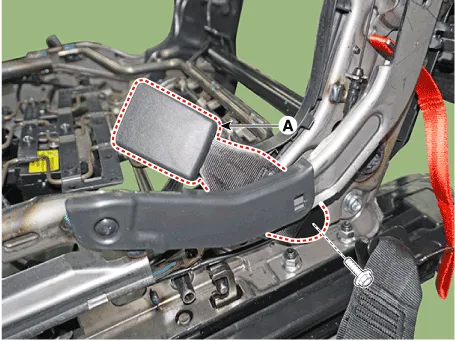

Loosen the mounting bolt and remove the second row seat belt buckle [RH] (A)
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

4.
To install, reverse removal procedure.

•
The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types.
•
Distinguish the rear side seat buckle from the center seat buckle before latching.
•
If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example- beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.).
•
After latching the buckle and tongue, check the fastening force using a Push-Pull Gauge (fastening force : 3kgf or less)
[Third row seat belt buckle]
1.
Remove the third row seat assembly [RH].
2.

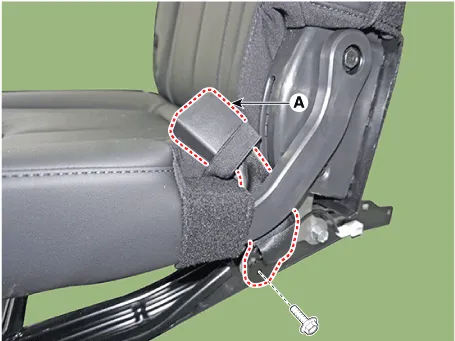

Loosen the mounting bolt and remove the third row seat belt buckle [LH] (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

3.
To install, reverse removal procedure.
