Hyundai Santa Fe (TM): Engine Control System / Purge Control Solenoid Valve (PCSV). Schematic diagrams

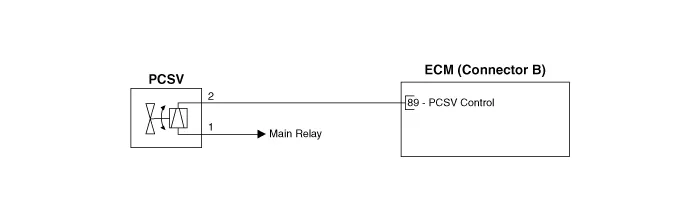

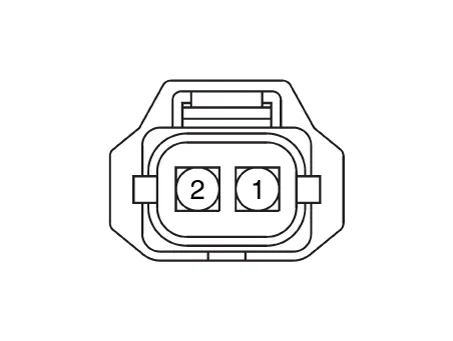

| Circuit Diagram |
Specification Item Specification Coil Resistance (Ω) 19.0 - 22.0 [20°C (68°F)]
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3.
