Hyundai Santa Fe (TM): Automatic Transaxle Control System / Position Switch. Description and operation
| Description |
| • |

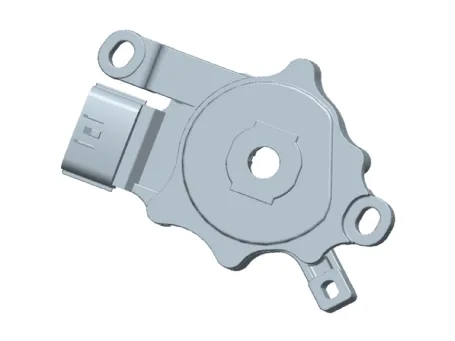

The position switch mounted on the upper of transaxle and connected
with shifter lever.
|
| • |
The position switch has four points of contact and it makes the signals(S1,
S2, S3, S4).
|
| • |
The position switch signals delivered at the TCM according to control
of the shift lever positions(P, R, N, D) and it is used to control of
the gear setting.
|
Inspection • Refer to the DTC manual for the check procedure.
Fault Diagnosis ▶ Fault Diagnosis for Symptom Major Symptom Expected Cause Items to Check and Measures Shift lever inoperable Faulty shift cable tension Adjust shift cable tension (refer to "Automatic Transaxle System – Position Switch") Faulty shift cable assembly/connection Check manual control valve assembly and re-assemble if necessary.
