Description
•

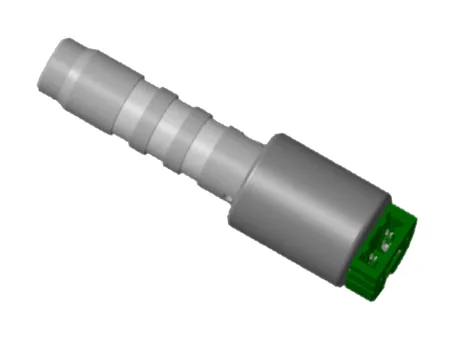

Overdrive clutch control solenoid valve(OD/C_VFS) is attached to the valve body.
•
This variable force solenoid valve directly controls the hydraulic pressure inside the overdrive clutch.

    Inspection    • Refer to the DTC manual for the check procedure.

    Component Location (1)_Valve Body Cover 1. Valve Body Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector Component Location (2)_Solenoid Valve 1.
