Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the IATS connector.
3.
Measure resistance between the IATS terminals 3 and 4.
4.
Check that the resistance is within the specification.
Specification : Refer to "Specification"
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.

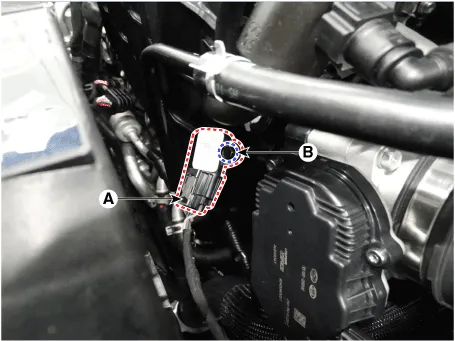

Disconnect the manifold absolute pressure sensor connector (A).
3.
Remove the installation bolt (B), and then remove the sensor from the surge tank.
Tightening Torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Installation

•
Install the component with the specified torques.
•
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

•
Insert the sensor in the installation hole and be careful not to damage when installation.
1.
Installation is reverse of removal.
