Hyundai Santa Fe (TM): Head-Up Display (HUD) / Head-up display settings

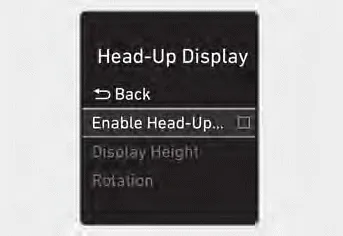

- Head-up display can be enabled from the Settings menu in the User Settings
mode on the instrument cluster LCD display. Select:
- Setup -> Head-Up Display -> Enable Head-Up Display - After turning on the head-up display, you can change the settings of ‘Display Height’ and ‘Content Selection’ of the Head-Up Display.
The Head-Up Display is an optional feature that allows the driver to view information projected onto a transparent screen while still keeping your eyes safely on the road ahead while driving.
1. Turn by Turn (TBT) navigation 2. Traffic 3. Speedometer 4. SCC set speed 5. SCC Vehicle distance 6. Highway Driving Assist 7. Lane Following Assist 8.
