Removal and Installation

•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly System - "Engine cover")
3.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly System - "Engine Room Under Cover")
4.
Disconnect the front oxygen sensor connectors (A).
5.
Remove the front muffler.
(Refer to Intake and Exhaust Manifold - "Front Muffler")
6.

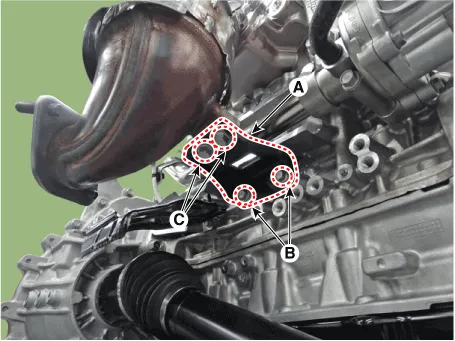

Remove the exhaust manifold stay (A).
Tightening torque :
Bolts (B) : 18.6 - 27.5 N.m (1.9 - 2.8 kgf.m, 13.7 - 20.3 lb-ft)
Bolts (C) : 52.0 - 57.9 N.m (5.3 - 5.9 kgf.m, 38.3 - 42.7 lb-ft)

7.

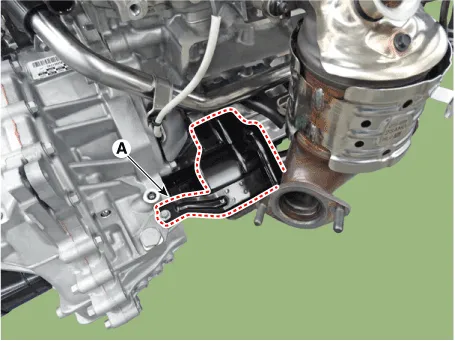

Remove the drive shaft heat protector (A).
Tightening torque
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

8.
Remove the engine mounting support bracket.
(Refer to Engine and Transaxle Assembly - "Engine Mounting")
9.

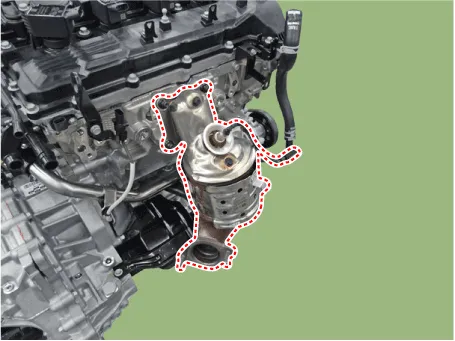

Remove the exhaust manifold (A).
Tightening torque
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

10.

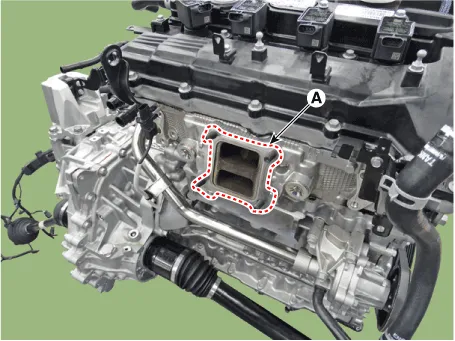

Remove the exhaust manifold gasket (A).
11.
Install in the reverse order of removal.

•
When installing the exhaust manifold, with a new gasket.
•

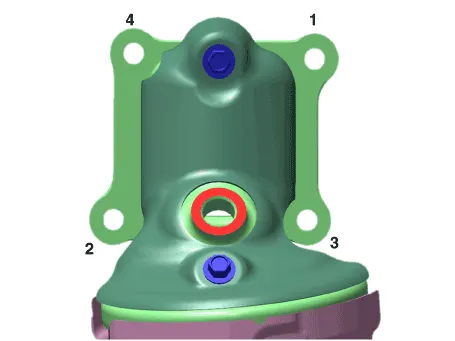

When installing the exhaust manifold, tighten the nuts with pre-torque first and then tighten the nuts with specified torque in the sequence shown.
