Hyundai Santa Fe (TM): Emergency Call System / Emergency Call (eCall) Speaker. Repair procedures
| REMOVAL |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. |

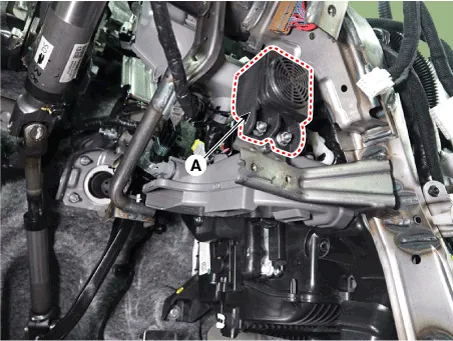

Remove the ecall speaker (A).
|
| 4. |

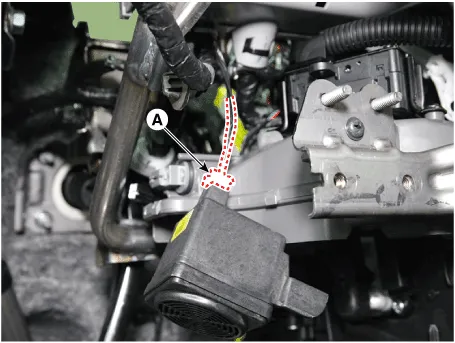

Remove the ecal speaker after disconnecting speaker connector (A).
|
| Installation |
| 1. |
Install the speaker and connect the speaker connector.
|
| 2. |
Install the glove box housing cover.
|
| 3. |
Connect the negative (-) battery terminal.
|
