Hyundai Santa Fe (TM): Engine Control System / Crankshaft Position Sensor (CKPS). Schematic diagrams

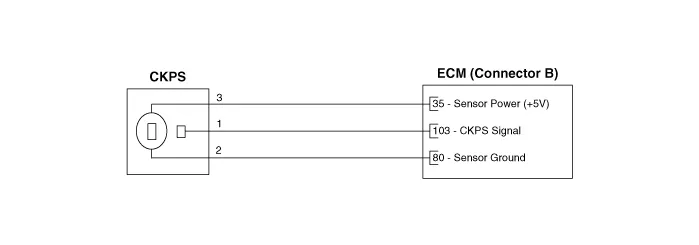

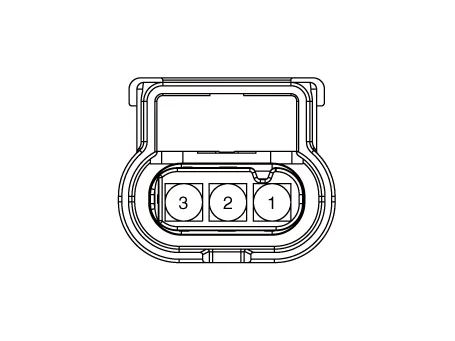

| Circuit Diagram |
Description Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one of the most important sensors of the engine control system.
Inspection 1. Check the signal waveform of the CMPS and CKPS using the diagnostic tool. Specification : Refer to "DTC Diagnostic Guide" Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
