Hyundai Santa Fe (TM): Air conditioning System / Compressor. Components and components location
| Components |

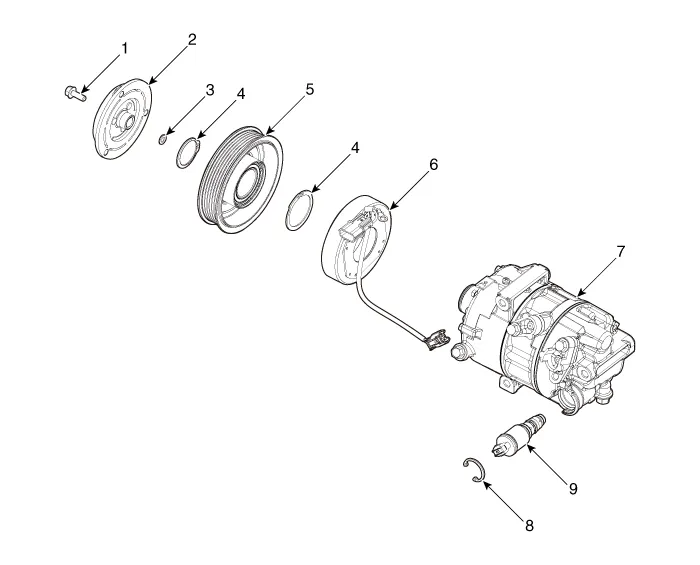

| 1. Clutch Bolt 2. Disc & Hub Assembly 3. Clutch Spacer 4. Snap Ring 5. Pulley |
6. Magnetic Coil
Assembly 7. Compressor 8. Electric Control Valve (ECV) spacer 9. Electric Control Valve (ECV) |

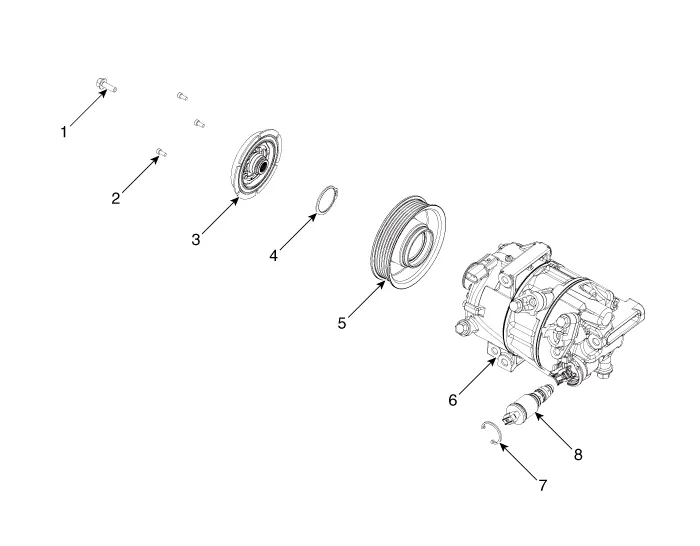

| 1. Clutch Bolt 2. Limiter Bolt 3. Limiter & Damper Assembly 4. Snap Ring |
5. Pulley 6. Compressor 7. Electric Control Valve (ECV) spacer 8. Electric Control Valve (ECV) |
Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine.
Removal 1. If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.
